Mga 8 TV sur HDMI

Mga 8 TV sur HDMI [Réglé]

TV non détectée Cauldron, la prochaine version de Mageia

OPS56 Membre non connecté

Le 30/12/2020 à 10h39

Bonjour à tous,

Un petit problème pour faire détecter la TV branchée en HDMI sur mon PC.

Lorsque je branche le câble HDMI, le choix pour étendre l'écran ou bien le dupliquer apparait, Quelque soit mon choix, dans la configuration de l'affichage, pas de tv détectée. Je n'ai que l'écran du PC !

C'est un PC portable avec 2 cartes Intel et Nvidia.

Caché :

Code BASH :

$ inxi -F
System:    Host: Portable Kernel: 5.10.3-desktop-2.mga8 x86_64 bits: 64 Desktop: KDE Plasma 5.20.4 Distro: Mageia 8 mga8
Machine:   Type: Laptop System: Dell product: G3 3500 v: N/A serial: <superuser required>
           Mobo: Dell model: 0K6YFX v: A00 serial: <superuser required> UEFI: Dell v: 1.6.0 date: 10/29/2020
Battery:   ID-1: BAT0 charge: 68.0 Wh condition: 68.0/68.0 Wh (100%)
CPU:       Info: 6-Core model: Intel Core i7-10750H bits: 64 type: MT MCP L2 cache: 12 MiB
           Speed: 4764 MHz min/max: 800/5000 MHz Core speeds (MHz): 1: 4764 2: 4872 3: 4544 4: 4699 5: 4263 6: 4717 7: 4783
           8: 4712 9: 4624 10: 4602 11: 4604 12: 4601
Graphics:  Device-1: Intel UHD Graphics driver: i915 v: kernel
           Device-2: NVIDIA TU116M [GeForce GTX 1660 Ti Mobile] driver: N/A
           Device-3: Realtek Integrated_Webcam_HD type: USB driver: uvcvideo
           Display: x11 server: Mageia X.org 1.20.10 driver: intel,nouveau,v4l resolution: 1920x1080~144Hz
           OpenGL: renderer: Mesa Intel UHD Graphics (CML GT2) v: 4.6 Mesa 20.3.1
Audio:     Device-1: Intel Comet Lake PCH cAVS driver: sof-audio-pci
           Device-2: NVIDIA TU116 High Definition Audio driver: snd_hda_intel
           Sound Server: ALSA v: k5.10.3-desktop-2.mga8
Network:   Device-1: Intel Comet Lake PCH CNVi WiFi driver: iwlwifi
           IF: wlp0s20f3 state: up mac: 2c:db:07:33:3a:01
           Device-2: Realtek driver: r8169
           IF: enp59s0 state: down mac: b0:7b:25:3c:4f:61
Drives:    Local Storage: total: 476.94 GiB used: 34.67 GiB (7.3%)
           ID-1: /dev/nvme0n1 vendor: SK Hynix model: BC511 NVMe 512GB size: 476.94 GiB
Partition: ID-1: / size: 29.76 GiB used: 11.77 GiB (39.6%) fs: ext4 dev: /dev/nvme0n1p7
           ID-2: /home size: 157.09 GiB used: 22.83 GiB (14.5%) fs: ext4 dev: /dev/nvme0n1p11
Swap:      ID-1: swap-1 type: partition size: 5.67 GiB used: 0 KiB (0.0%) dev: /dev/nvme0n1p9
Sensors:   System Temperatures: cpu: 62.0 C mobo: N/A
           Fan Speeds (RPM): N/A
Info:      Processes: 293 Uptime: N/A Memory: 15.4 GiB used: 1.6 GiB (10.4%) Shell: Bash inxi: 3.2.01

le dernier log Xorg:

Caché :

Code BASH :

[    13.949] (--) Log file renamed from "/var/log/Xorg.pid-3821.log" to "/var/log/Xorg.0.log"
[    13.949]
X.Org X Server 1.20.10
X Protocol Version 11, Revision 0
[    13.949] Build Operating System: ec2x1 5.6.8-server-1.mga7
[    13.949] Current Operating System: Linux Portable 5.10.3-desktop-2.mga8 #1 SMP Mon Dec 28 15:42:03 UTC 2020 x86_64
[    13.949] Kernel command line: BOOT_IMAGE=/boot/vmlinuz-5.10.3-desktop-2.mga8 root=UUID=f29dfa45-552a-43b9-81c6-9b7c316d1833 ro splash quiet noiswmd resume=/dev/nvme0n1p9 audit=0 vga=794
[    13.949] Build Date: 02 December 2020  02:19:03PM
[    13.949] Build ID: x11-server 1.20.10-2.mga8
[    13.949] Current version of pixman: 0.40.0
[    13.949]     Before reporting problems, check https://bugs.mageia.org
    to make sure that you have the latest version.
[    13.949] Markers: (--) probed, (**) from config file, (==) default setting,
    (++) from command line, (!!) notice, (II) informational,
    (WW) warning, (EE) error, (NI) not implemented, (??) unknown.
[    13.949] (==) Log file: "/var/log/Xorg.0.log", Time: Wed Dec 30 10:18:45 2020
[    13.949] (==) Using config file: "/etc/X11/xorg.conf"
[    13.949] (==) Using config directory: "/etc/X11/xorg.conf.d"
[    13.949] (==) Using system config directory "/usr/share/X11/xorg.conf.d"
[    13.951] (==) ServerLayout "layout"
[    13.951] (**) |-->Screen "screen1" (0)
[    13.951] (**) |   |-->Monitor "monitor1"
[    13.951] (**) |   |-->Device "device1"
[    13.951] (**) |   |-->GPUDevice "device2"
[    13.951] (**) Option "DontZap" "False"
[    13.951] (**) Option "AllowMouseOpenFail"
[    13.951] (==) Automatically adding devices
[    13.951] (==) Automatically enabling devices
[    13.951] (==) Automatically adding GPU devices
[    13.951] (==) Automatically binding GPU devices
[    13.951] (==) Max clients allowed: 256, resource mask: 0x1fffff
[    13.951] (==) FontPath set to:
    catalogue:/etc/X11/fontpath.d,
    built-ins
[    13.951] (**) ModulePath set to "/usr/lib64/xorg/extra-modules,/usr/lib64/xorg/modules,/usr/lib/xorg/extra-modules,/usr/lib/xorg/modules"
[    13.951] (II) The server relies on udev to provide the list of input devices.
    If no devices become available, reconfigure udev or disable AutoAddDevices.
[    13.951] (II) Loader magic: 0x61fd40
[    13.951] (II) Module ABI versions:
[    13.951]     X.Org ANSI C Emulation: 0.4
[    13.951]     X.Org Video Driver: 24.1
[    13.951]     X.Org XInput driver : 24.1
[    13.951]     X.Org Server Extension : 10.0
[    13.951] (++) using VT number 1
[    13.951] (II) systemd-logind: logind integration requires -keeptty and -keeptty was not provided, disabling logind integration
[    13.952] (II) xfree86: Adding drm device (/dev/dri/card0)
[    13.957] (--) PCI:*(0@0:2:0) 8086:9bc4:1028:09e1 rev 5, Mem @ 0x6022000000/16777216, 0x4000000000/268435456, I/O @ 0x00005000/64, BIOS @ 0x????????/131072
[    13.958] (--) PCI: (1@0:0:0) 10de:2191:1028:09e1 rev 161, Mem @ 0x82000000/16777216, 0x70000000/268435456, 0x80000000/33554432, I/O @ 0x00004000/128, BIOS @ 0x????????/524288
[    13.958] (II) Open ACPI successful (/var/run/acpid.socket)
[    13.958] (II) "glx" will be loaded by default.
[    13.958] (II) LoadModule: "v4l"
[    13.958] (II) Loading /usr/lib64/xorg/modules/drivers/v4l_drv.so
[    13.958] (II) Module v4l: vendor="X.Org Foundation"
[    13.958]     compiled for 1.20.7, module version = 0.1.1
[    13.958]     ABI class: X.Org Video Driver, version 24.1
[    13.958] (II) LoadModule: "glx"
[    13.959] (II) Loading /usr/lib64/xorg/modules/extensions/libglx.so
[    13.959] (II) Module glx: vendor="X.Org Foundation"
[    13.959]     compiled for 1.20.10, module version = 1.0.0
[    13.959]     ABI class: X.Org Server Extension, version 10.0
[    13.959] (II) LoadModule: "intel"
[    13.959] (II) Loading /usr/lib64/xorg/modules/drivers/intel_drv.so
[    13.960] (II) Module intel: vendor="X.Org Foundation"
[    13.960]     compiled for 1.20.10, module version = 2.99.917
[    13.960]     Module class: X.Org Video Driver
[    13.960]     ABI class: X.Org Video Driver, version 24.1
[    13.960] (II) LoadModule: "nouveau"
[    13.960] (II) Loading /usr/lib64/xorg/modules/drivers/nouveau_drv.so
[    13.960] (II) Module nouveau: vendor="X.Org Foundation"
[    13.960]     compiled for 1.20.10, module version = 1.0.16
[    13.960]     Module class: X.Org Video Driver
[    13.960]     ABI class: X.Org Video Driver, version 24.1
[    13.960] (II) v4l driver for Video4Linux overlay mode (V4L2)
[    13.960] (II) intel: Driver for Intel(R) Integrated Graphics Chipsets:
    i810, i810-dc100, i810e, i815, i830M, 845G, 854, 852GM/855GM, 865G,
    915G, E7221 (i915), 915GM, 945G, 945GM, 945GME, Pineview GM,
    Pineview G, 965G, G35, 965Q, 946GZ, 965GM, 965GME/GLE, G33, Q35, Q33,
    GM45, 4 Series, G45/G43, Q45/Q43, G41, B43
[    13.960] (II) intel: Driver for Intel(R) HD Graphics
[    13.960] (II) intel: Driver for Intel(R) Iris(TM) Graphics
[    13.960] (II) intel: Driver for Intel(R) Iris(TM) Pro Graphics
[    13.960] (II) NOUVEAU driver
[    13.960] (II) NOUVEAU driver for NVIDIA chipset families :
[    13.960]     RIVA TNT            (NV04)
[    13.960]     RIVA TNT2           (NV05)
[    13.960]     GeForce 256         (NV10)
[    13.960]     GeForce 2           (NV11, NV15)
[    13.960]     GeForce 4MX         (NV17, NV18)
[    13.960]     GeForce 3           (NV20)
[    13.960]     GeForce 4Ti         (NV25, NV28)
[    13.960]     GeForce FX          (NV3x)
[    13.960]     GeForce 6           (NV4x)
[    13.960]     GeForce 7           (G7x)
[    13.960]     GeForce 8           (G8x)
[    13.960]     GeForce 9           (G9x)
[    13.960]     GeForce GTX 2xx/3xx (GT2xx)
[    13.960]     GeForce GTX 4xx/5xx (GFxxx)
[    13.960]     GeForce GTX 6xx/7xx (GKxxx)
[    13.960]     GeForce GTX 9xx     (GMxxx)
[    13.960]     GeForce GTX 10xx    (GPxxx)
[    13.960] (WW) Falling back to old probe method for v4l
[    13.961] (II) intel(0): Using Kernel Mode Setting driver: i915, version 1.6.0 20200917
[    14.124] (EE) [drm] Failed to open DRM device for pci:0000:01:00.0: -19
[    14.124] (--) intel(0): Integrated Graphics Chipset: Intel(R) HD Graphics
[    14.124] (--) intel(0): CPU: x86-64, sse2, sse3, ssse3, sse4.1, sse4.2, avx, avx2; using a maximum of 6 threads
[    14.124] (**) intel(0): Depth 24, (--) framebuffer bpp 32
[    14.124] (==) intel(0): RGB weight 888
[    14.124] (==) intel(0): Default visual is TrueColor
[    14.124] (II) intel(0): Output eDP1 using monitor section monitor1
[    14.124] (**) intel(0): Option "PreferredMode" "1920x1080"
[    14.125] (**) intel(0): Found backlight control interface intel_backlight (type 'raw') for output eDP1
[    14.125] (II) intel(0): Enabled output eDP1
[    14.125] (II) intel(0): Output DP1 has no monitor section
[    14.125] (II) intel(0): Enabled output DP1
[    14.125] (II) intel(0): Output HDMI1 has no monitor section
[    14.125] (II) intel(0): Enabled output HDMI1
[    14.125] (II) intel(0): Output DP2 has no monitor section
[    14.125] (II) intel(0): Enabled output DP2
[    14.125] (II) intel(0): Output HDMI2 has no monitor section
[    14.125] (II) intel(0): Enabled output HDMI2
[    14.125] (--) intel(0): Using a maximum size of 256x256 for hardware cursors
[    14.125] (II) intel(0): Output VIRTUAL1 has no monitor section
[    14.125] (II) intel(0): Enabled output VIRTUAL1
[    14.125] (--) intel(0): Output eDP1 using initial mode 1920x1080 on pipe 0
[    14.125] (==) intel(0): TearFree enabled
[    14.125] (==) intel(0): Using gamma correction (1.0, 1.0, 1.0)
[    14.125] (==) intel(0): DPI set to (96, 96)
[    14.125] (II) Loading sub module "dri3"
[    14.125] (II) LoadModule: "dri3"
[    14.125] (II) Module "dri3" already built-in
[    14.125] (II) Loading sub module "dri2"
[    14.125] (II) LoadModule: "dri2"
[    14.125] (II) Module "dri2" already built-in
[    14.125] (II) Loading sub module "present"
[    14.125] (II) LoadModule: "present"
[    14.125] (II) Module "present" already built-in
[    14.127] (II) intel(0): SNA initialized with Coffeelake (gen9) backend
[    14.127] (==) intel(0): Backing store enabled
[    14.127] (==) intel(0): Silken mouse enabled
[    14.128] (II) intel(0): HW Cursor enabled
[    14.128] (**) intel(0): DPMS enabled
[    14.128] (==) intel(0): Display hotplug detection enabled
[    14.224] (EE) v4l: /dev/video0: no overlay support
[    14.224] (EE) v4l: /dev/video1: no overlay support
[    14.224] (II) intel(0): [DRI2] Setup complete
[    14.224] (II) intel(0): [DRI2]   DRI driver: i965
[    14.224] (II) intel(0): [DRI2]   VDPAU driver: va_gl
[    14.224] (II) intel(0): direct rendering: DRI2 DRI3 enabled
[    14.224] (II) intel(0): hardware support for Present enabled
[    14.224] (WW) intel(0): Option "MonitorLayout" is not used
[    14.224] (WW) intel(0): Option "PreferredMode" is not used
[    14.224] (II) Initializing extension Generic Event Extension
[    14.224] (II) Initializing extension SHAPE
[    14.224] (II) Initializing extension MIT-SHM
[    14.224] (II) Initializing extension XInputExtension
[    14.225] (II) Initializing extension XTEST
[    14.225] (II) Initializing extension BIG-REQUESTS
[    14.225] (II) Initializing extension SYNC
[    14.225] (II) Initializing extension XKEYBOARD
[    14.225] (II) Initializing extension XC-MISC
[    14.225] (II) Initializing extension SECURITY
[    14.225] (II) Initializing extension XFIXES
[    14.225] (II) Initializing extension RENDER
[    14.225] (II) Initializing extension RANDR
[    14.225] (II) Initializing extension COMPOSITE
[    14.225] (II) Initializing extension DAMAGE
[    14.225] (II) Initializing extension MIT-SCREEN-SAVER
[    14.226] (II) Initializing extension DOUBLE-BUFFER
[    14.226] (II) Initializing extension RECORD
[    14.226] (II) Initializing extension DPMS
[    14.226] (II) Initializing extension Present
[    14.226] (II) Initializing extension DRI3
[    14.226] (II) Initializing extension X-Resource
[    14.226] (II) Initializing extension XVideo
[    14.226] (II) Initializing extension XVideo-MotionCompensation
[    14.226] (II) Initializing extension GLX
[    14.243] (II) AIGLX: Loaded and initialized i965
[    14.243] (II) GLX: Initialized DRI2 GL provider for screen 0
[    14.243] (II) Initializing extension XFree86-VidModeExtension
[    14.244] (II) Initializing extension XFree86-DGA
[    14.244] (II) Initializing extension XFree86-DRI
[    14.244] (II) Initializing extension DRI2
[    14.246] (II) intel(0): switch to mode 1920x1080@144.0 on eDP1 using pipe 0, position (0, 0), rotation normal, reflection none
[    14.247] (II) intel(0): Setting screen physical size to 508 x 285
[    14.278] (II) config/udev: Adding input device Video Bus (/dev/input/event2)
[    14.279] (**) Video Bus: Applying InputClass "libinput keyboard catchall"
[    14.279] (**) Video Bus: Applying InputClass "system-keyboard"
[    14.279] (II) LoadModule: "libinput"
[    14.279] (II) Loading /usr/lib64/xorg/modules/input/libinput_drv.so
[    14.279] (II) Module libinput: vendor="X.Org Foundation"
[    14.279]     compiled for 1.20.8, module version = 0.30.0
[    14.279]     Module class: X.Org XInput Driver
[    14.279]     ABI class: X.Org XInput driver, version 24.1
[    14.279] (II) Using input driver 'libinput' for 'Video Bus'
[    14.279] (**) Video Bus: always reports core events
[    14.279] (**) Option "Device" "/dev/input/event2"
[    14.279] (**) Option "_source" "server/udev"
[    14.283] (II) event2  - Video Bus: is tagged by udev as: Keyboard
[    14.283] (II) event2  - Video Bus: device is a keyboard
[    14.283] (II) event2  - Video Bus: device removed
[    14.292] (**) Option "config_info" "udev:/sys/devices/LNXSYSTM:00/LNXSYBUS:00/PNP0A08:00/LNXVIDEO:01/input/input3/event2"
[    14.292] (II) XINPUT: Adding extended input device "Video Bus" (type: KEYBOARD, id 6)
[    14.292] (**) Option "xkb_model" "pc105"
[    14.292] (**) Option "xkb_layout" "fr"
[    14.292] (**) Option "xkb_options" "compose:rwin"
[    14.301] (II) event2  - Video Bus: is tagged by udev as: Keyboard
[    14.302] (II) event2  - Video Bus: device is a keyboard
[    14.302] (II) config/udev: Adding input device Video Bus (/dev/input/event1)
[    14.302] (**) Video Bus: Applying InputClass "libinput keyboard catchall"
[    14.302] (**) Video Bus: Applying InputClass "system-keyboard"
[    14.302] (II) Using input driver 'libinput' for 'Video Bus'
[    14.302] (**) Video Bus: always reports core events
[    14.302] (**) Option "Device" "/dev/input/event1"
[    14.302] (**) Option "_source" "server/udev"
[    14.302] (II) event1  - Video Bus: is tagged by udev as: Keyboard
[    14.302] (II) event1  - Video Bus: device is a keyboard
[    14.302] (II) event1  - Video Bus: device removed
[    14.318] (**) Option "config_info" "udev:/sys/devices/LNXSYSTM:00/LNXSYBUS:00/PNP0A08:00/device:00/LNXVIDEO:00/input/input2/event1"
[    14.318] (II) XINPUT: Adding extended input device "Video Bus" (type: KEYBOARD, id 7)
[    14.318] (**) Option "xkb_model" "pc105"
[    14.318] (**) Option "xkb_layout" "fr"
[    14.318] (**) Option "xkb_options" "compose:rwin"
[    14.318] (II) event1  - Video Bus: is tagged by udev as: Keyboard
[    14.318] (II) event1  - Video Bus: device is a keyboard
[    14.319] (II) config/udev: Adding input device Power Button (/dev/input/event6)
[    14.319] (**) Power Button: Applying InputClass "libinput keyboard catchall"
[    14.319] (**) Power Button: Applying InputClass "system-keyboard"
[    14.319] (II) Using input driver 'libinput' for 'Power Button'
[    14.319] (**) Power Button: always reports core events
[    14.319] (**) Option "Device" "/dev/input/event6"
[    14.319] (**) Option "_source" "server/udev"
[    14.319] (II) event6  - Power Button: is tagged by udev as: Keyboard
[    14.319] (II) event6  - Power Button: device is a keyboard
[    14.319] (II) event6  - Power Button: device removed
[    14.329] (**) Option "config_info" "udev:/sys/devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0C:00/input/input7/event6"
[    14.329] (II) XINPUT: Adding extended input device "Power Button" (type: KEYBOARD, id 8)
[    14.329] (**) Option "xkb_model" "pc105"
[    14.329] (**) Option "xkb_layout" "fr"
[    14.329] (**) Option "xkb_options" "compose:rwin"
[    14.329] (II) event6  - Power Button: is tagged by udev as: Keyboard
[    14.329] (II) event6  - Power Button: device is a keyboard
[    14.329] (II) config/udev: Adding input device Lid Switch (/dev/input/event5)
[    14.329] (II) No input driver specified, ignoring this device.
[    14.329] (II) This device may have been added with another device file.
[    14.330] (II) config/udev: Adding input device Sleep Button (/dev/input/event7)
[    14.330] (**) Sleep Button: Applying InputClass "libinput keyboard catchall"
[    14.330] (**) Sleep Button: Applying InputClass "system-keyboard"
[    14.330] (II) Using input driver 'libinput' for 'Sleep Button'
[    14.330] (**) Sleep Button: always reports core events
[    14.330] (**) Option "Device" "/dev/input/event7"
[    14.330] (**) Option "_source" "server/udev"
[    14.330] (II) event7  - Sleep Button: is tagged by udev as: Keyboard
[    14.330] (II) event7  - Sleep Button: device is a keyboard
[    14.330] (II) event7  - Sleep Button: device removed
[    14.345] (**) Option "config_info" "udev:/sys/devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0E:00/input/input8/event7"
[    14.345] (II) XINPUT: Adding extended input device "Sleep Button" (type: KEYBOARD, id 9)
[    14.345] (**) Option "xkb_model" "pc105"
[    14.345] (**) Option "xkb_layout" "fr"
[    14.345] (**) Option "xkb_options" "compose:rwin"
[    14.345] (II) event7  - Sleep Button: is tagged by udev as: Keyboard
[    14.345] (II) event7  - Sleep Button: device is a keyboard
[    14.346] (II) config/udev: Adding input device HDA NVidia HDMI/DP,pcm=3 (/dev/input/event9)
[    14.346] (II) No input driver specified, ignoring this device.
[    14.346] (II) This device may have been added with another device file.
[    14.346] (II) config/udev: Adding input device HDA NVidia HDMI/DP,pcm=7 (/dev/input/event10)
[    14.346] (II) No input driver specified, ignoring this device.
[    14.346] (II) This device may have been added with another device file.
[    14.346] (II) config/udev: Adding input device HDA NVidia HDMI/DP,pcm=8 (/dev/input/event11)
[    14.346] (II) No input driver specified, ignoring this device.
[    14.346] (II) This device may have been added with another device file.
[    14.346] (II) config/udev: Adding input device HDA NVidia HDMI/DP,pcm=9 (/dev/input/event12)
[    14.346] (II) No input driver specified, ignoring this device.
[    14.346] (II) This device may have been added with another device file.
[    14.346] (II) config/udev: Adding input device HDA NVidia HDMI/DP,pcm=10 (/dev/input/event13)
[    14.346] (II) No input driver specified, ignoring this device.
[    14.346] (II) This device may have been added with another device file.
[    14.347] (II) config/udev: Adding input device Integrated_Webcam_HD: Integrate (/dev/input/event20)
[    14.347] (**) Integrated_Webcam_HD: Integrate: Applying InputClass "libinput keyboard catchall"
[    14.347] (**) Integrated_Webcam_HD: Integrate: Applying InputClass "system-keyboard"
[    14.347] (II) Using input driver 'libinput' for 'Integrated_Webcam_HD: Integrate'
[    14.347] (**) Integrated_Webcam_HD: Integrate: always reports core events
[    14.347] (**) Option "Device" "/dev/input/event20"
[    14.347] (**) Option "_source" "server/udev"
[    14.347] (II) event20 - Integrated_Webcam_HD: Integrate: is tagged by udev as: Keyboard
[    14.347] (II) event20 - Integrated_Webcam_HD: Integrate: device is a keyboard
[    14.347] (II) event20 - Integrated_Webcam_HD: Integrate: device removed
[    14.372] (**) Option "config_info" "udev:/sys/devices/pci0000:00/0000:00:14.0/usb1/1-5/1-5:1.0/input/input26/event20"
[    14.372] (II) XINPUT: Adding extended input device "Integrated_Webcam_HD: Integrate" (type: KEYBOARD, id 10)
[    14.372] (**) Option "xkb_model" "pc105"
[    14.372] (**) Option "xkb_layout" "fr"
[    14.372] (**) Option "xkb_options" "compose:rwin"
[    14.372] (II) event20 - Integrated_Webcam_HD: Integrate: is tagged by udev as: Keyboard
[    14.372] (II) event20 - Integrated_Webcam_HD: Integrate: device is a keyboard
[    14.372] (II) config/udev: Adding input device DELL09E1:00 04F3:30CB Mouse (/dev/input/event14)
[    14.372] (**) DELL09E1:00 04F3:30CB Mouse: Applying InputClass "libinput pointer catchall"
[    14.372] (II) Using input driver 'libinput' for 'DELL09E1:00 04F3:30CB Mouse'
[    14.372] (**) DELL09E1:00 04F3:30CB Mouse: always reports core events
[    14.372] (**) Option "Device" "/dev/input/event14"
[    14.372] (**) Option "_source" "server/udev"
[    14.373] (II) event14 - DELL09E1:00 04F3:30CB Mouse: is tagged by udev as: Mouse Pointingstick
[    14.373] (II) event14 - DELL09E1:00 04F3:30CB Mouse: device is a pointer
[    14.373] (II) event14 - DELL09E1:00 04F3:30CB Mouse: device removed
[    14.408] (**) Option "config_info" "udev:/sys/devices/pci0000:00/0000:00:15.1/i2c_designware.1/i2c-10/i2c-DELL09E1:00/0018:04F3:30CB.0002/input/input19/event14"
[    14.408] (II) XINPUT: Adding extended input device "DELL09E1:00 04F3:30CB Mouse" (type: MOUSE, id 11)
[    14.408] (**) Option "AccelerationScheme" "none"
[    14.408] (**) DELL09E1:00 04F3:30CB Mouse: (accel) selected scheme none/0
[    14.408] (**) DELL09E1:00 04F3:30CB Mouse: (accel) acceleration factor: 2.000
[    14.408] (**) DELL09E1:00 04F3:30CB Mouse: (accel) acceleration threshold: 4
[    14.408] (II) event14 - DELL09E1:00 04F3:30CB Mouse: is tagged by udev as: Mouse Pointingstick
[    14.408] (II) event14 - DELL09E1:00 04F3:30CB Mouse: device is a pointer
[    14.409] (II) config/udev: Adding input device DELL09E1:00 04F3:30CB Mouse (/dev/input/mouse0)
[    14.409] (II) No input driver specified, ignoring this device.
[    14.409] (II) This device may have been added with another device file.
[    14.409] (II) config/udev: Adding input device DELL09E1:00 04F3:30CB Touchpad (/dev/input/event15)
[    14.409] (**) DELL09E1:00 04F3:30CB Touchpad: Applying InputClass "libinput touchpad catchall"
[    14.409] (II) Using input driver 'libinput' for 'DELL09E1:00 04F3:30CB Touchpad'
[    14.409] (**) DELL09E1:00 04F3:30CB Touchpad: always reports core events
[    14.409] (**) Option "Device" "/dev/input/event15"
[    14.409] (**) Option "_source" "server/udev"
[    14.410] (II) event15 - DELL09E1:00 04F3:30CB Touchpad: is tagged by udev as: Touchpad
[    14.410] (II) event15 - DELL09E1:00 04F3:30CB Touchpad: device is a touchpad
[    14.410] (II) event15 - DELL09E1:00 04F3:30CB Touchpad: device removed
[    14.437] (**) Option "config_info" "udev:/sys/devices/pci0000:00/0000:00:15.1/i2c_designware.1/i2c-10/i2c-DELL09E1:00/0018:04F3:30CB.0002/input/input20/event15"
[    14.437] (II) XINPUT: Adding extended input device "DELL09E1:00 04F3:30CB Touchpad" (type: TOUCHPAD, id 12)
[    14.437] (**) Option "AccelerationScheme" "none"
[    14.437] (**) DELL09E1:00 04F3:30CB Touchpad: (accel) selected scheme none/0
[    14.437] (**) DELL09E1:00 04F3:30CB Touchpad: (accel) acceleration factor: 2.000
[    14.437] (**) DELL09E1:00 04F3:30CB Touchpad: (accel) acceleration threshold: 4
[    14.438] (II) event15 - DELL09E1:00 04F3:30CB Touchpad: is tagged by udev as: Touchpad
[    14.439] (II) event15 - DELL09E1:00 04F3:30CB Touchpad: device is a touchpad
[    14.439] (II) config/udev: Adding input device DELL09E1:00 04F3:30CB Touchpad (/dev/input/mouse1)
[    14.439] (II) No input driver specified, ignoring this device.
[    14.439] (II) This device may have been added with another device file.
[    14.439] (II) config/udev: Adding input device sof-hda-dsp Headphone Mic (/dev/input/event16)
[    14.439] (II) No input driver specified, ignoring this device.
[    14.439] (II) This device may have been added with another device file.
[    14.439] (II) config/udev: Adding input device sof-hda-dsp HDMI/DP,pcm=3 (/dev/input/event17)
[    14.439] (II) No input driver specified, ignoring this device.
[    14.439] (II) This device may have been added with another device file.
[    14.439] (II) config/udev: Adding input device sof-hda-dsp HDMI/DP,pcm=4 (/dev/input/event18)
[    14.439] (II) No input driver specified, ignoring this device.
[    14.439] (II) This device may have been added with another device file.
[    14.439] (II) config/udev: Adding input device sof-hda-dsp HDMI/DP,pcm=5 (/dev/input/event19)
[    14.439] (II) No input driver specified, ignoring this device.
[    14.439] (II) This device may have been added with another device file.
[    14.440] (II) config/udev: Adding input device Intel HID events (/dev/input/event3)
[    14.440] (**) Intel HID events: Applying InputClass "libinput keyboard catchall"
[    14.440] (**) Intel HID events: Applying InputClass "system-keyboard"
[    14.440] (II) Using input driver 'libinput' for 'Intel HID events'
[    14.440] (**) Intel HID events: always reports core events
[    14.440] (**) Option "Device" "/dev/input/event3"
[    14.440] (**) Option "_source" "server/udev"
[    14.440] (II) event3  - Intel HID events: is tagged by udev as: Keyboard
[    14.440] (II) event3  - Intel HID events: device is a keyboard
[    14.440] (II) event3  - Intel HID events: device removed
[    14.456] (**) Option "config_info" "udev:/sys/devices/platform/INT33D5:00/input/input4/event3"
[    14.456] (II) XINPUT: Adding extended input device "Intel HID events" (type: KEYBOARD, id 13)
[    14.456] (**) Option "xkb_model" "pc105"
[    14.456] (**) Option "xkb_layout" "fr"
[    14.456] (**) Option "xkb_options" "compose:rwin"
[    14.456] (II) event3  - Intel HID events: is tagged by udev as: Keyboard
[    14.456] (II) event3  - Intel HID events: device is a keyboard
[    14.457] (II) config/udev: Adding input device Intel HID 5 button array (/dev/input/event4)
[    14.457] (**) Intel HID 5 button array: Applying InputClass "libinput keyboard catchall"
[    14.457] (**) Intel HID 5 button array: Applying InputClass "system-keyboard"
[    14.457] (II) Using input driver 'libinput' for 'Intel HID 5 button array'
[    14.457] (**) Intel HID 5 button array: always reports core events
[    14.457] (**) Option "Device" "/dev/input/event4"
[    14.457] (**) Option "_source" "server/udev"
[    14.457] (II) event4  - Intel HID 5 button array: is tagged by udev as: Keyboard
[    14.457] (II) event4  - Intel HID 5 button array: device is a keyboard
[    14.457] (II) event4  - Intel HID 5 button array: device removed
[    14.468] (**) Option "config_info" "udev:/sys/devices/platform/INT33D5:00/input/input5/event4"
[    14.468] (II) XINPUT: Adding extended input device "Intel HID 5 button array" (type: KEYBOARD, id 14)
[    14.468] (**) Option "xkb_model" "pc105"
[    14.468] (**) Option "xkb_layout" "fr"
[    14.468] (**) Option "xkb_options" "compose:rwin"
[    14.468] (II) event4  - Intel HID 5 button array: is tagged by udev as: Keyboard
[    14.468] (II) event4  - Intel HID 5 button array: device is a keyboard
[    14.469] (II) config/udev: Adding input device Dell WMI hotkeys (/dev/input/event8)
[    14.469] (**) Dell WMI hotkeys: Applying InputClass "libinput keyboard catchall"
[    14.469] (**) Dell WMI hotkeys: Applying InputClass "system-keyboard"
[    14.469] (II) Using input driver 'libinput' for 'Dell WMI hotkeys'
[    14.469] (**) Dell WMI hotkeys: always reports core events
[    14.469] (**) Option "Device" "/dev/input/event8"
[    14.469] (**) Option "_source" "server/udev"
[    14.469] (II) event8  - Dell WMI hotkeys: is tagged by udev as: Keyboard
[    14.469] (II) event8  - Dell WMI hotkeys: device is a keyboard
[    14.469] (II) event8  - Dell WMI hotkeys: device removed
[    14.480] (**) Option "config_info" "udev:/sys/devices/platform/PNP0C14:03/wmi_bus/wmi_bus-PNP0C14:03/9DBB5994-A997-11DA-B012-B622A1EF5492/input/input10/event8"
[    14.480] (II) XINPUT: Adding extended input device "Dell WMI hotkeys" (type: KEYBOARD, id 15)
[    14.480] (**) Option "xkb_model" "pc105"
[    14.480] (**) Option "xkb_layout" "fr"
[    14.480] (**) Option "xkb_options" "compose:rwin"
[    14.480] (II) event8  - Dell WMI hotkeys: is tagged by udev as: Keyboard
[    14.480] (II) event8  - Dell WMI hotkeys: device is a keyboard
[    14.481] (II) config/udev: Adding input device AT Translated Set 2 keyboard (/dev/input/event0)
[    14.481] (**) AT Translated Set 2 keyboard: Applying InputClass "libinput keyboard catchall"
[    14.481] (**) AT Translated Set 2 keyboard: Applying InputClass "system-keyboard"
[    14.481] (II) Using input driver 'libinput' for 'AT Translated Set 2 keyboard'
[    14.481] (**) AT Translated Set 2 keyboard: always reports core events
[    14.481] (**) Option "Device" "/dev/input/event0"
[    14.481] (**) Option "_source" "server/udev"
[    14.481] (II) event0  - AT Translated Set 2 keyboard: is tagged by udev as: Keyboard
[    14.481] (II) event0  - AT Translated Set 2 keyboard: device is a keyboard
[    14.482] (II) event0  - AT Translated Set 2 keyboard: device removed
[    14.495] (**) Option "config_info" "udev:/sys/devices/platform/i8042/serio0/input/input0/event0"
[    14.495] (II) XINPUT: Adding extended input device "AT Translated Set 2 keyboard" (type: KEYBOARD, id 16)
[    14.495] (**) Option "xkb_model" "pc105"
[    14.495] (**) Option "xkb_layout" "fr"
[    14.495] (**) Option "xkb_options" "compose:rwin"
[    14.495] (II) event0  - AT Translated Set 2 keyboard: is tagged by udev as: Keyboard
[    14.495] (II) event0  - AT Translated Set 2 keyboard: device is a keyboard
[    14.496] (II) config/udev: Adding input device PS/2 Generic Mouse (/dev/input/event21)
[    14.496] (**) PS/2 Generic Mouse: Applying InputClass "libinput pointer catchall"
[    14.496] (II) Using input driver 'libinput' for 'PS/2 Generic Mouse'
[    14.496] (**) PS/2 Generic Mouse: always reports core events
[    14.496] (**) Option "Device" "/dev/input/event21"
[    14.496] (**) Option "_source" "server/udev"
[    14.496] (II) event21 - PS/2 Generic Mouse: is tagged by udev as: Mouse
[    14.496] (II) event21 - PS/2 Generic Mouse: device is a pointer
[    14.497] (II) event21 - PS/2 Generic Mouse: device removed
[    14.526] (**) Option "config_info" "udev:/sys/devices/platform/i8042/serio1/input/input9/event21"
[    14.526] (II) XINPUT: Adding extended input device "PS/2 Generic Mouse" (type: MOUSE, id 17)
[    14.526] (**) Option "AccelerationScheme" "none"
[    14.526] (**) PS/2 Generic Mouse: (accel) selected scheme none/0
[    14.526] (**) PS/2 Generic Mouse: (accel) acceleration factor: 2.000
[    14.526] (**) PS/2 Generic Mouse: (accel) acceleration threshold: 4
[    14.526] (II) event21 - PS/2 Generic Mouse: is tagged by udev as: Mouse
[    14.526] (II) event21 - PS/2 Generic Mouse: device is a pointer
[    14.527] (II) config/udev: Adding input device PS/2 Generic Mouse (/dev/input/mouse2)
[    14.527] (II) No input driver specified, ignoring this device.
[    14.527] (II) This device may have been added with another device file.
[    16.130] (II) intel(0): EDID vendor "AUO", prod id 33005
[    16.130] (II) intel(0): Printing DDC gathered Modelines:
[    16.130] (II) intel(0): Modeline "1920x1080"x0.0  368.14  1920 1968 2000 2102  1080 1090 1095 1216 +hsync -vsync (175.1 kHz eP)
[    93.427] (II) PM Event received: Capability Changed
[   270.571] (II) PM Event received: Capability Changed
[   687.567] (II) PM Event received: Capability Changed

Mon Xorg.conf

Caché :

Code BASH :


# File generated by XFdrake (rev 262502)
# **********************************************************************
# Refer to the xorg.conf man page for details about the format of
# this file.
# **********************************************************************
Section "ServerFlags"
    Option "DontZap" "False" # disable <Ctrl><Alt><BS> (server abort)
    AllowMouseOpenFail # allows the server to start up even if the mouse does not work
    #DontZoom # disable <Ctrl><Alt><KP_+>/<KP_-> (resolution switching)
EndSection
Section "Module"
    Load "v4l" # Video for Linux
EndSection
Section "Monitor"
    Identifier "monitor1"
    VendorName "Plug'n Play"
    Option "PreferredMode" "1920x1080"

    # Apple iMac modes
    ModeLine "1024x768"   78.525 1024 1049 1145 1312   768  769  772  800 +hsync +vsync
    ModeLine "800x600"    62.357  800  821  901 1040   600  601  604  632 +hsync +vsync
    ModeLine "640x480"    49.886  640  661  725  832   480  481  484  514 +hsync +vsync

    # Apple monitors tend to do 832x624
    ModeLine "832x624"    57      832  876  940 1152   624  625  628  667 -hsync -vsync

    # Apple PowerBook G3
    ModeLine "800x600"    100     800  816  824  840   600  616  624  640 -hsync -vsync

    # Apple TI Powerbook
    ModeLine "1152x768"   78.741 1152 1173 1269 1440   768  769  772  800 +vsync +vsync

    # Pismo Firewire G3
    ModeLine "1024x768"   65     1024 1032 1176 1344   768  771  777  806 -hsync -vsync

    # iBook2
    ModeLine "1024x768"   65     1024 1048 1184 1344   768  771  777  806 -hsync -vsync

    # 17" Apple Studio Display
    ModeLine "1024x768"   112.62 1024 1076 1248 1420 768 768 780 808 +hsync +vsync

    # HiRes Apple Studio Display
    ModeLine "1280x1024"  135    1280 1288 1392 1664  1024 1027 1030 1064

    # Another variation
    ModeLine "1280x1024"  134.989 1280 1317 1429 1688  1024 1025 1028 1066 +hsync +vsync

    # TV fullscreen mode or DVD fullscreen output.
    # 768x576 @ 79 Hz, 50 kHz hsync
    ModeLine "768x576"     50.00  768  832  846 1000   576  590  595  630

    # 768x576 @ 100 Hz, 61.6 kHz hsync
    ModeLine "768x576"     63.07  768  800  960 1024   576  578  590  616

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1920x1080_120"  368.76  1920 2072 2288 2656  1080 1081 1084 1157  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1920x1080_100"  302.02  1920 2072 2280 2640  1080 1081 1084 1144  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1920x1080_85"  252.93  1920 2064 2272 2624  1080 1081 1084 1134  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1920x1080_75"  220.64  1920 2056 2264 2608  1080 1081 1084 1128  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1920x1080_60"  172.80  1920 2040 2248 2576  1080 1081 1084 1118  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1920x1080_50"  141.45  1920 2032 2232 2544  1080 1081 1084 1112  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1600x900_120"  255.69  1600 1728 1904 2208  900 901 904 965  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1600x900_100"  208.90  1600 1720 1896 2192  900 901 904 953  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1600x900_85"  174.79  1600 1712 1888 2176  900 901 904 945  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1600x900_75"  152.28  1600 1704 1880 2160  900 901 904 940  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1600x900_60"  119.00  1600 1696 1864 2128  900 901 904 932  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1600x900_50"  97.04  1600 1680 1848 2096  900 901 904 926  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1368x768_120"  185.67  1368 1472 1624 1880  768 769 772 823  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1368x768_100"  151.73  1368 1464 1616 1864  768 769 772 814  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1368x768_85"  125.67  1368 1456 1600 1832  768 769 772 807  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1368x768_75"  110.19  1368 1456 1600 1832  768 769 772 802  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1368x768_60"  85.86  1368 1440 1584 1800  768 769 772 795  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1368x768_50"  69.92  1368 1424 1568 1768  768 769 772 791  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1360x765_120"  182.63  1360 1456 1608 1856  765 766 769 820  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1360x765_100"  149.22  1360 1456 1600 1840  765 766 769 811  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1360x765_85"  124.65  1360 1448 1592 1824  765 766 769 804  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1360x765_75"  108.34  1360 1440 1584 1808  765 766 769 799  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1360x765_60"  84.40  1360 1424 1568 1776  765 766 769 792  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1360x765_50"  69.34  1360 1416 1560 1760  765 766 769 788  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1280x720_120"  161.56  1280 1376 1512 1744  720 721 724 772  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1280x720_100"  131.85  1280 1368 1504 1728  720 721 724 763  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1280x720_85"  110.01  1280 1360 1496 1712  720 721 724 756  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1280x720_75"  95.65  1280 1352 1488 1696  720 721 724 752  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1280x720_60"  74.48  1280 1336 1472 1664  720 721 724 746  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1280x720_50"  60.47  1280 1328 1456 1632  720 721 724 741  -HSync +Vsync
EndSection
Section "Monitor"
    Identifier "monitor2"
    VendorName "Plug'n Play"
    Option "PreferredMode" "1920x1080"

    # Apple iMac modes
    ModeLine "1024x768"   78.525 1024 1049 1145 1312   768  769  772  800 +hsync +vsync
    ModeLine "800x600"    62.357  800  821  901 1040   600  601  604  632 +hsync +vsync
    ModeLine "640x480"    49.886  640  661  725  832   480  481  484  514 +hsync +vsync

    # Apple monitors tend to do 832x624
    ModeLine "832x624"    57      832  876  940 1152   624  625  628  667 -hsync -vsync

    # Apple PowerBook G3
    ModeLine "800x600"    100     800  816  824  840   600  616  624  640 -hsync -vsync

    # Apple TI Powerbook
    ModeLine "1152x768"   78.741 1152 1173 1269 1440   768  769  772  800 +vsync +vsync

    # Pismo Firewire G3
    ModeLine "1024x768"   65     1024 1032 1176 1344   768  771  777  806 -hsync -vsync

    # iBook2
    ModeLine "1024x768"   65     1024 1048 1184 1344   768  771  777  806 -hsync -vsync

    # 17" Apple Studio Display
    ModeLine "1024x768"   112.62 1024 1076 1248 1420 768 768 780 808 +hsync +vsync

    # HiRes Apple Studio Display
    ModeLine "1280x1024"  135    1280 1288 1392 1664  1024 1027 1030 1064

    # Another variation
    ModeLine "1280x1024"  134.989 1280 1317 1429 1688  1024 1025 1028 1066 +hsync +vsync

    # TV fullscreen mode or DVD fullscreen output.
    # 768x576 @ 79 Hz, 50 kHz hsync
    ModeLine "768x576"     50.00  768  832  846 1000   576  590  595  630

    # 768x576 @ 100 Hz, 61.6 kHz hsync
    ModeLine "768x576"     63.07  768  800  960 1024   576  578  590  616

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1920x1080_120"  368.76  1920 2072 2288 2656  1080 1081 1084 1157  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1920x1080_100"  302.02  1920 2072 2280 2640  1080 1081 1084 1144  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1920x1080_85"  252.93  1920 2064 2272 2624  1080 1081 1084 1134  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1920x1080_75"  220.64  1920 2056 2264 2608  1080 1081 1084 1128  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1920x1080_60"  172.80  1920 2040 2248 2576  1080 1081 1084 1118  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1920x1080_50"  141.45  1920 2032 2232 2544  1080 1081 1084 1112  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1600x900_120"  255.69  1600 1728 1904 2208  900 901 904 965  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1600x900_100"  208.90  1600 1720 1896 2192  900 901 904 953  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1600x900_85"  174.79  1600 1712 1888 2176  900 901 904 945  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1600x900_75"  152.28  1600 1704 1880 2160  900 901 904 940  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1600x900_60"  119.00  1600 1696 1864 2128  900 901 904 932  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1600x900_50"  97.04  1600 1680 1848 2096  900 901 904 926  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1368x768_120"  185.67  1368 1472 1624 1880  768 769 772 823  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1368x768_100"  151.73  1368 1464 1616 1864  768 769 772 814  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1368x768_85"  125.67  1368 1456 1600 1832  768 769 772 807  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1368x768_75"  110.19  1368 1456 1600 1832  768 769 772 802  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1368x768_60"  85.86  1368 1440 1584 1800  768 769 772 795  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1368x768_50"  69.92  1368 1424 1568 1768  768 769 772 791  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1360x765_120"  182.63  1360 1456 1608 1856  765 766 769 820  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1360x765_100"  149.22  1360 1456 1600 1840  765 766 769 811  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1360x765_85"  124.65  1360 1448 1592 1824  765 766 769 804  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1360x765_75"  108.34  1360 1440 1584 1808  765 766 769 799  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1360x765_60"  84.40  1360 1424 1568 1776  765 766 769 792  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1360x765_50"  69.34  1360 1416 1560 1760  765 766 769 788  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1280x720_120"  161.56  1280 1376 1512 1744  720 721 724 772  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1280x720_100"  131.85  1280 1368 1504 1728  720 721 724 763  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1280x720_85"  110.01  1280 1360 1496 1712  720 721 724 756  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1280x720_75"  95.65  1280 1352 1488 1696  720 721 724 752  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1280x720_60"  74.48  1280 1336 1472 1664  720 721 724 746  -HSync +Vsync

    # modeline generated by gtf(1) [handled by XFdrake]
    ModeLine "1280x720_50"  60.47  1280 1328 1456 1632  720 721 724 741  -HSync +Vsync
EndSection
Section "Device"
    Identifier "device1"
    VendorName "Intel Corporation"
    BoardName "Intel 810 and later"
    Driver "intel"
    Screen 0
    BusID "PCI:0:2:0"
    Option "DPMS"
    Option "MonitorLayout" "NONE,CRT+LFP"
EndSection
Section "Device"
    Identifier "device2"
    VendorName "NVIDIA Corporation"
    BoardName "NVIDIA GeForce 635 series and later"
    Driver "nouveau"
    Screen 0
    BusID "PCI:1:0:0"
    Option "DPMS"
EndSection
Section "Screen"
    Identifier "screen1"
    Device "device1"
    Monitor "monitor1"
    DefaultColorDepth 24

    Subsection "Display"
        Depth 8
        Modes "1920x1080" "1600x900" "1366x768" "1360x765" "1280x720"
    EndSubsection

    Subsection "Display"
        Depth 15
        Modes "1920x1080" "1600x900" "1366x768" "1360x765" "1280x720"
    EndSubsection

    Subsection "Display"
        Depth 16
        Modes "1920x1080" "1600x900" "1366x768" "1360x765" "1280x720"
    EndSubsection

    Subsection "Display"
        Depth 24
        Modes "1920x1080" "1600x900" "1366x768" "1360x765" "1280x720"
    EndSubsection
EndSection
Section "Screen"
    Identifier "screen2"
    Device "device2"
    Monitor "monitor2"
    DefaultColorDepth 24

    Subsection "Display"
        Depth 8
        Modes "1920x1080" "1600x900" "1366x768" "1360x765" "1280x720"
    EndSubsection

    Subsection "Display"
        Depth 15
        Modes "1920x1080" "1600x900" "1366x768" "1360x765" "1280x720"
    EndSubsection

    Subsection "Display"
        Depth 16
        Modes "1920x1080" "1600x900" "1366x768" "1360x765" "1280x720"
    EndSubsection

    Subsection "Display"
        Depth 24
        Modes "1920x1080" "1600x900" "1366x768" "1360x765" "1280x720"
    EndSubsection
EndSection
Section "ServerLayout"
    Identifier "layout1"
    Screen "screen1"
    Screen "screen2" RightOf "screen1"
    #Option "Xinerama"
EndSection

Ca a fonctionné avant l'installation de bumblebee. je pense que c'est depuis que c'est en panne.

Si l'un d'entre vous a une piste à creuser ?

Merci d'avance.

Édité par OPS56 Le 30/12/2020 à 10h40

Dell G3-15 Intel Corei7 - 16Go Ram - Nvidia GTX1660 Ti (Tri boot Mageia 9- 64 bits / Linux Mint 20 Cinamon/ Windows 10)
Core i5 760 - 8Go Ram - Nvidia Gforce 450 - (Triple boot Mageia 9-64 bits - Plasma 5 / Mint 20 Cinamon / Open Suse Tumbleweed - Plasma 5)

OPS56 Membre non connecté

Le 14/03/2021 à 14h41

#283260

Bonjour à tous,
Ca fait maintenant, quelques semaines que Mageia 8 est sortie. (D'ailleurs, je ne sais pas s'il est possible de déplacer ce post, car il se trouve dans la rubrique Cauldron ?)

Malgré les mise à jour de noyau et de pilote, ça ne s'est pas amélioré :

Code BASH :

Linux Portable 5.10.20-desktop-2.mga8 #1 SMP Fri Mar 5 18:23:13 UTC 2021 x86_64 x86_64 x86_64 GNU/Linux

pilote nvidia 460.56
Lorsque je branche le cable HDMI et que je démarre le PC le deuxième écran n'est pas détecté :

Caché :

Code BASH :

$ xrandr
Screen 0: minimum 8 x 8, current 1920 x 1080, maximum 32767 x 32767
eDP1 connected primary 1920x1080+0+0 (normal left inverted right x axis y axis) 340mm x 190mm
   1920x1080    144.03*+  59.96    59.93
   1920x1080_120 120.00
   1920x1080_100 100.00
   1920x1080_85  85.00
   1920x1080_75  75.00
   1920x1080_60  60.00
   1920x1080_50  50.00
   1680x1050     59.95    59.88
   1400x1050     74.76    59.98
   1600x900     144.00    59.95    59.82
   1600x900_120 120.00
   1600x900_100 100.00
   1600x900_85   85.00
   1600x900_75   75.00
   1600x900_60   60.00
   1600x900_50   50.00
   1280x1024     85.02    76.25    75.02    75.02    60.02
   1400x900      59.96    59.88
   1280x960      85.00    60.00
   1368x768     144.00    59.88    59.85
   1368x768_120 120.00
   1368x768_100 100.00
   1368x768_85   85.00
   1368x768_75   75.00
   1368x768_60   60.00
   1368x768_50   50.00
   1360x765_120 120.00
   1360x765_100 100.00
   1360x765_85   85.00
   1360x765_75   75.00
   1360x765_60   60.00
   1360x765_50   50.00
   1280x800      59.81    59.91
   1152x864      75.00
   1280x720     144.00    59.86    59.74
   1280x720_120 120.00
   1280x720_100 100.00
   1280x720_85   85.00
   1280x720_75   75.00
   1280x720_60   60.00
   1280x720_50   50.00
   1152x768      68.35
   1024x768      98.16    85.00    75.03    74.81    70.07    60.00    60.00
   1024x768i     86.96
   1024x576     144.00    59.90    59.82
   832x624       74.55    74.18
   960x540      144.00    59.63    59.82
   800x600      186.01    94.87    85.14    72.19    75.00    60.32    56.25
   768x576       99.99    79.37
   864x486      144.00    59.92    59.57
   640x480      116.65    85.01    72.81    75.00    59.94
   720x405      144.00    59.51    58.99
   720x400       85.04
   640x400       85.08
   640x360      144.00    59.84    59.32
   640x350       85.08
DP1 disconnected (normal left inverted right x axis y axis)
DP2 disconnected (normal left inverted right x axis y axis)
HDMI1 disconnected (normal left inverted right x axis y axis)
HDMI2 disconnected (normal left inverted right x axis y axis)
VIRTUAL1 disconnected (normal left inverted right x axis y axis)

Si je branche le câble session démarré, j'ai l'invit à l'écran pour choisir l'écran dupliqué, l'extension d'écran...
Mais quelque soit le choix, le second écran n'est pas pris en compte même résultat qu'au dessus pour la commande xrandr

Sur la même machine j'ai un OS de secours (Mint 20).

Code BASH :

$ uname -a
Linux olimint 5.4.0-66-generic #74-Ubuntu SMP Wed Jan 27 22:54:38 UTC 2021 x86_64 x86_64 x86_64 GNU/Linux

Pilote nvidia 460.39

L'écran Hdmi est détecté dès le branchement du câble (avec le pilote intel ou le Nvidia et le double affichage est bien géré).

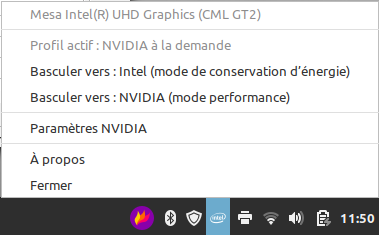

L'option dans la barre des notifications pour passer d'une carte à l'autre fonctionne. L'option (On demand), fait apparemment la bascule en automatique.

Maintenant, que nous sommes plus nombreux sur Mageia 8, quelqu'un d'autre rencontre t'il le même problème ? C'est un peu pénible de devoir redémarrer sur linux mint pour projeter sur la TV.

Merci d'avance.

Répondre

Vous n'êtes pas autorisé à écrire dans cette catégorie

Notre Mission	Liens du site	Nous joindre	MLO est hébergé par
MLO est le forum francophone de la distribution Mageia et vous propose également un portail dédié aux débutants. MLO vous apporte un support sur la distribution grâce à son forum et vous offre des nouvelles de la distribution, des logiciels libres et de l'Open Source en général. Notre site a aussi pour but de vous montrer que Mageia est un système d'exploitation complet et facile à prendre en main. Vous apprendrez à installer simplement et à administrer efficacement votre système en un temps record.	Forum Documentation News du libre Mageia	Contacter MLO Mastodon MLO Flux RSS	MLO est un projet soutenu par Nos partenaires et amis
MLO est mis à disposition selon les termes de la licence Creative Commons.

OPS56 Membre non connecté

OPS56 Membre non connecté

Guygoye Membre non connecté

OPS56 Membre non connecté

Guygoye Membre non connecté

Guygoye Membre non connecté

OPS56 Membre non connecté

OPS56 Membre non connecté

Guygoye Membre non connecté

OPS56 Membre non connecté

Guygoye Membre non connecté

OPS56 Membre non connecté
