background yes

use_xft yes

xftfont Sans:size=10

xftalpha 1

update_interval 1.0

total_run_times 0

own_window yes

own_window_transparent yes

own_window_argb_visual yes

own_window_type normal

own_window_hints undecorated,below,skip_taskbar,skip_pager

double_buffer yes

minimum_size 250 250

maximum_width 250

text_buffer_size 1024

draw_shades no

draw_outline no

draw_borders no

draw_graph_borders no

default_color white

default_outline_color white

alignment top_left

gap_x 20

gap_y 20

no_buffers yes

uppercase no

cpu_avg_samples 2

override_utf8_locale yes

#

color1 white

#

color2 orange

#

color3 cornflowerblue

#

color4 green

#cornflowerblue

# Lua Load #

#lua_load ~/.conky/ring.lua

#lua_draw_hook_pre clock_rings

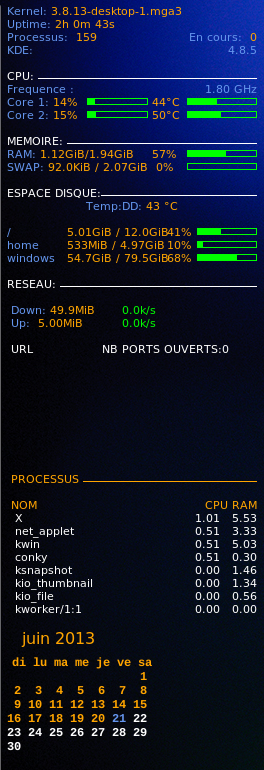

TEXT



${font Sans:size=8}${color3}Kernel: ${color2}$kernel

${color3}Uptime:${color2} $uptime

${color3}Processus: ${color2} $processes${color3}${alignr}En cours: ${color2} $running_processes

${color3}KDE:${alignr} 4.8.5



${color1}CPU: ${hr}

${color3}Frequence :$alignr ${freq_g} GHz

${color3}Core 1:${color2} ${cpu cpu0}%${goto 85}${color4}${cpubar cpu0 6,60}${color2}${goto 150}${exec expr `cat /sys/class/hwmon/hwmon0/device/temp2_input` / 1000}°C${goto 185}${color4}${execbar expr `cat /sys/class/hwmon/hwmon0/device/temp2_input` / 1000}${color2}

${color3}Core 2:${color2} ${cpu cpu1}%${goto 85}${color4}${cpubar cpu1 6,60}${color2}${goto 150}${exec expr `cat /sys/class/hwmon/hwmon0/device/temp3_input` / 1000}°C${goto 185}${color4}${execbar expr `cat /sys/class/hwmon/hwmon0/device/temp3_input` / 1000}${color2}



${color1}MEMOIRE: ${hr}

${color3}RAM:${color2} $mem/$memmax ${goto 150}$memperc% ${goto 185}${color4}${membar}${color2}

${color3}SWAP:${color2} ${swap} / ${swapmax} ${goto 150} ${swapperc}%${goto 185}${color4}${swapbar}



${color1}ESPACE DISQUE:${hr}

${color3}${alignc}TempD: ${color2}${execi 10 hddtemp -n /dev/sda} °C



${color3}/ ${color2}${goto 65}${fs_used /} / ${fs_size /} ${goto 165}${fs_used_perc /}% ${goto 195}${color4}${fs_bar /}${color2}

${color3}home ${color2}${goto 65}${fs_used /home} / ${fs_size /home} ${goto 165}${fs_used_perc /home}% ${goto 195}${color4}${fs_bar /home}${color2}

${color3}windows ${color2}${goto 65}${fs_used /mnt/windows} / ${fs_size /mnt/windows} ${goto 165}${fs_used_perc /mnt/windows}% ${goto 195}${color4}${fs_bar /mnt/windows}${color2}



${color1}RESEAU: ${hr}



${color3}Down:${color2} ${totaldown eth0}${goto 120}${color4}${downspeedf eth0}k/s

${color3}Up: ${color2} ${totalup eth0}${goto 120}${color4}${upspeedf eth0}k/s



${color1}URL${goto 100}NB PORTS OUVERTS:${tcp_portmon 1 65535 count}

${color2}${tcp_portmon 1 65535 rip 0}${goto 195}${tcp_portmon 1 65535 rport 0}

${tcp_portmon 1 65535 rip 1}${goto 195}${tcp_portmon 1 65535 rport 1}

${tcp_portmon 1 65535 rip 2}${goto 195}${tcp_portmon 1 65535 rport 2}

${tcp_portmon 1 65535 rip 3}${goto 195}${tcp_portmon 1 65535 rport 3}

${tcp_portmon 1 65535 rip 4}${goto 195}${tcp_portmon 1 65535 rport 4}

${tcp_portmon 1 65535 rip 5}${goto 195}${tcp_portmon 1 65535 rport 5}

${tcp_portmon 1 65535 rip 6}${goto 195}${tcp_portmon 1 65535 rport 6}

${tcp_portmon 1 65535 rip 7}${goto 195}${tcp_portmon 1 65535 rport 7}



${color2}PROCESSUS ${hr}



NOM ${alignr}CPU ${alignr}RAM

${color1} ${top name 1} ${alignr}${top cpu 1} ${alignr}${top mem 1}

${color1} ${top name 2} ${alignr}${top cpu 2} ${alignr}${top mem 2}

${color1} ${top name 3} ${alignr}${top cpu 3} ${alignr}${top mem 3}

${color1} ${top name 4} ${alignr}${top cpu 4} ${alignr}${top mem 4}

${color1} ${top name 5} ${alignr}${top cpu 5} ${alignr}${top mem 5}

${color1} ${top name 6} ${alignr}${top cpu 6} ${alignr}${top mem 6}

${color1} ${top name 7} ${alignr}${top cpu 7} ${alignr}${top mem 7}

${color1} ${top name 8} ${alignr}${top cpu 8} ${alignr}${top mem 8}



${color2}${goto 20}${font Sans size=8}${time %B %Y}

${voffset 3}${font courier:style=bold:size=9}${execpi 300 DJS=`date +%_d`; cal -s | sed '1d' | sed s/"$DJS"'b'/'${color 6495ee}'"$DJS"'$color'/}$font

background yes

use_xft yes

xftfont Sans:size=10

xftalpha 1

update_interval 1.0

total_run_times 0

own_window yes

own_window_transparent yes

own_window_argb_visual yes

own_window_type normal

own_window_hints undecorated,below,skip_taskbar,skip_pager

double_buffer yes

minimum_size 220 220

maximum_width 220

text_buffer_size 1024

draw_shades no

draw_outline no

draw_borders yes

draw_graph_borders no

default_color white

default_outline_color white

alignment top_right

gap_x 10

gap_y 10

no_buffers yes

uppercase no

cpu_avg_samples 2

override_utf8_locale yes

#

color1 white

#

color2 orange

#

color3 cornflowerblue

#

color4 green



lua_load ~/.conky/horloge.lua

lua_draw_hook_post main_rings

lua_load ~/.conky/draw_bg.lua (attention ceci est mon chemin à modifier en fonction de votre chemin)

lua_draw_hook_pre draw_bg



TEXT















${goto 72}${voffset -10}${color1}${color1}${font Sans:size=14}${time %H}${time :%M}${time :%S}

--[[

Ring Meters by londonali1010 (2009)



This script draws percentage meters as rings. It is fully customisable; all options are described in the script.



IMPORTANT: if you are using the 'cpu' function, it will cause a segmentation fault if it tries to draw a ring straight away. The if statement on line 145 uses a delay to make sure that this doesn't happen. It calculates the length of the delay by the number of updates since Conky started. Generally, a value of 5s is long enough, so if you update Conky every 1s, use update_num>5 in that if statement (the default). If you only update Conky every 2s, you should change it to update_num>3; conversely if you update Conky every 0.5s, you should use update_num>10. ALSO, if you change your Conky, is it best to use "killall conky; conky" to update it, otherwise the update_num will not be reset and you will get an error.



To call this script in Conky, use the following (assuming that you save this script to ~/scripts/rings.lua):

lua_load ~/scripts/rings-v1.2.lua

lua_draw_hook_pre ring_stats



Changelog:

+ v1.2 -- Added option for the ending angle of the rings (07.10.2009)

+ v1.1 -- Added options for the starting angle of the rings, and added the "max" variable, to allow for variables that output a numerical value rather than a percentage (29.09.2009)

+ v1.0 -- Original release (28.09.2009)

]]



require 'cairo'



function conky_main_rings()



if (os.date("%l"))=='12' then

heure=(os.date("%M")/60)

else

heure=(os.date("%l"))+(os.date("%M")/60)

end



-- START PARAMETERS HERE

local rings_settings={



{

name="",

arg=heure,

max=11.99,

x=160,

y=150,

radius=110,

thickness=25,

gap_sectors=5,

sectors=12,

bg_colour1={{0,0x999999,0},{0.5,0x999999,1}, {1,0x999999,0}},

fg_colour1={{0,0xFFFF00,0},{0.5,0xFFFF00,1}, {1,0xFFFF00,0}},

fg_colour2={{0,0X0FF000,0},{0.5,0x0FF000,1}, {1,0x0FF000,0}},

bd_colour1={{0,0X00FF00,1},{0.5,0x00FF00,1}, {1,0x00FF00,1}},

},

{

name="",

arg=(os.date("%M"))+(os.date("%S")/60),

max=59.99,

x=160,

y=150,

radius=85,

thickness=20,

start_angle=0,

end_angle=360,

gap_sectors=2.5,

sectors=60,

fill_sector=false,

bg_colour1={{0,0x999999,0},{0.5,0x999999,1}, {1,0x999999,0}},

fg_colour1={{0,0X0FFFF0,0},{0.5,0X0FFFF0,1}, {1,0X0FFFF0,0}},

fg_colour2={{0,0x00FF00,0},{0.5,0x00FF00,1}, {1,0x00FF00,0}},

bd_colour1={{0,0X00FF00,1},{0.5,0x00FF00,1}, {1,0x00FF00,1}},

},

{

name="time",

arg="%S",

max=60,

x=160,

y=150,

radius=65,

thickness=20,

start_angle=0,

end_angle=360,

sectors=60,

fill_sector=false,

bg_colour1={{0,0x999999,0},{0.5,0x999999,1}, {1,0x999999,0}},

fg_colour1={{0,0XFFF00F,0},{0.5,0xFFF00F,1}, {1,0xFFF00F,0}},

fg_colour2={{0,0XFF0000,0},{0.5,0xFF0000,1}, {1,0xFF0000,0}},

bd_colour1={{0,0X00FF00,1},{0.5,0x00FF00,1}, {1,0x00FF00,1}},

},



}



--END OF PARAMETERS HERE



--main function



--if conky_window==nil then return end



local cs=cairo_xlib_surface_create(conky_window.display,

conky_window.drawable,

conky_window.visual, conky_window.width, conky_window.height)

local cr=cairo_create(cs)



if tonumber(conky_parse('${updates}'))>3 then

for i in pairs(rings_settings) do

draw_ring(cr,rings_settings[i])

end

end



cairo_destroy(cr)

end







function draw_ring(cr, t)



local function rgba_to_r_g_b_a(tcolour)

local colour,alpha=tcolour[2],tcolour[3]

return ((colour / 0x10000) % 0x100) / 255.,

((colour / 0x100) % 0x100) / 255., (colour % 0x100) / 255., alpha

end





local function calc_delta(tcol1,tcol2)

--calculate deltas P R G B A to table_colour 1



for x = 1, #tcol1 do

tcol1[x].dA = 0

tcol1[x].dP = 0

tcol1[x].dR = 0

tcol1[x].dG = 0

tcol1[x].dB = 0

if tcol2~=nil and #tcol1 == #tcol2 then

local r1,g1,b1,a1 = rgba_to_r_g_b_a(tcol1[x])

local r2,g2,b2,a2 = rgba_to_r_g_b_a(tcol2[x])

tcol1[x].dP = (tcol2[x][1]-tcol1[x][1])/t.sectors

tcol1[x].dR = (r2-r1)/t.sectors

tcol1[x].dG = (g2-g1)/t.sectors

tcol1[x].dB = (b2-b1)/t.sectors

tcol1[x].dA = (a2-a1)/t.sectors



end

end



return tcol1

end



--check values

local function setup(t)

if t.name==nil and t.arg==nil then

print ("No input values ... use parameters 'name'" +

" with 'arg' or only parameter 'arg' ")

return

end



if t.max==nil then

print ("No maximum value defined, use 'max'")

print ("for name=" .. t.name)

print ("with arg=" .. t.arg)

return

end

if t.name==nil then t.name="" end

if t.arg==nil then t.arg="" end



if t.xc==nil then t.xc=conky_window.width/2 end

if t.yc==nil then t.yc=conky_window.height/2 end

if t.thickness ==nil then t.thickness = 10 end

if t.radius ==nil then t.radius =conky_window.width/4 end

if t.start_angle==nil then t.start_angle =0 end

if t.end_angle==nil then t.end_angle=360 end

if t.bg_colour1==nil then

t.bg_colour1={{0,0x00ffff,0.1},{0.5,0x00FFFF,0.5},{1,0x00FFFF,0.1}}

end

if t.fg_colour1==nil then

t.fg_colour1={{0,0x00FF00,0.1},{0.5,0x00FF00,1},{1,0x00FF00,0.1}}

end

if t.bd_colour1==nil then

t.bd_colour1={{0,0xFFFF00,0.5},{0.5,0xFFFF00,1},{1,0xFFFF00,0.5}}

end

if t.sectors==nil then t.sectors=10 end

if t.gap_sectors==nil then t.gap_sectors=1 end

if t.fill_sector==nil then t.fill_sector=false end

if t.sectors==1 then t.fill_sector=false end

if t.border_size==nil then t.border_size=0 end

if t.cap==nil then t.cap="p" end

--some checks

if t.thickness>t.radius then t.thickness=t.radius*0.1 end

t.int_radius = t.radius-t.thickness



--check colors tables

for i=1, #t.bg_colour1 do

if #t.bg_colour1[i]~=3 then t.bg_colour1[i]={1,0xFFFFFF,0.5} end

end

for i=1, #t.fg_colour1 do

if #t.fg_colour1[i]~=3 then t.fg_colour1[i]={1,0xFF0000,1} end

end

for i=1, #t.bd_colour1 do

if #t.bd_colour1[i]~=3 then t.bd_colour1[i]={1,0xFFFF00,1} end

end



if t.bg_colour2~=nil then

for i=1, #t.bg_colour2 do

if #t.bg_colour2[i]~=3 then t.bg_colour2[i]={1,0xFFFFFF,0.5} end

end

end

if t.fg_colour2~=nil then

for i=1, #t.fg_colour2 do

if #t.fg_colour2[i]~=3 then t.fg_colour2[i]={1,0xFF0000,1} end

end

end

if t.bd_colour2~=nil then

for i=1, #t.bd_colour2 do

if #t.bd_colour2[i]~=3 then t.bd_colour2[i]={1,0xFFFF00,1} end

end

end



if t.start_angle>=t.end_angle then

local tmp_angle=t.end_angle

t.end_angle= t.start_angle

t.start_angle = tmp_angle

-- print ("inversed angles")

if t.end_angle-t.start_angle>360 and t.start_angle>0 then

t.end_angle=360+t.start_angle

print ("reduce angles")

end



if t.end_angle+t.start_angle>360 and t.start_angle<=0 then

t.end_angle=360+t.start_angle

print ("reduce angles")

end



if t.int_radius<0 then t.int_radius =0 end

if t.int_radius>t.radius then

local tmp_radius=t.radius

t.radius=t.int_radius

t.int_radius=tmp_radius

print ("inversed radius")

end

if t.int_radius==t.radius then

t.int_radius=0

print ("int radius set to 0")

end

end



t.fg_colour1 = calc_delta(t.fg_colour1,t.fg_colour2)

t.bg_colour1 = calc_delta(t.bg_colour1,t.bg_colour2)

t.bd_colour1 = calc_delta(t.bd_colour1,t.bd_colour2)

end



if t.draw_me == true then t.draw_me = nil end

if t.draw_me ~= nil and conky_parse(tostring(t.draw_me)) ~= "1" then return end

--initialize table

setup(t)



--initialize cairo context

cairo_save(cr)

cairo_translate(cr,t.xc,t.yc)

cairo_set_line_join (cr, CAIRO_LINE_JOIN_ROUND)

cairo_set_line_cap (cr, CAIRO_LINE_CAP_ROUND)



--get value

local value = 0

if t.name ~="" then

value = tonumber(conky_parse(string.format('${%s %s}', t.name, t.arg)))

else

value = tonumber(t.arg)

end

if value==nil then value =0 end



--initialize sectors

--angle of a sector :

local angleA = ((t.end_angle-t.start_angle)/t.sectors)*math.pi/180

--value of a sector :

local valueA = t.max/t.sectors

--first angle of a sector :

local lastAngle = t.start_angle*math.pi/180





local function draw_sector(type_arc,angle0,angle,valpc, idx)



--this function draws a portion of arc

--type of arc, angle0 = strating angle, angle= angle of sector,

--valpc = percentage inside the sector, idx = sctor number #

local tcolor

if type_arc=="bg" then --background

if valpc==1 then return end

tcolor=t.bg_colour1

elseif type_arc=="fg" then --foreground

if valpc==0 then return end

tcolor=t.fg_colour1

elseif type_arc=="bd" then --border

tcolor=t.bd_colour1

end



--angles equivalents to gap_sector

local ext_delta=math.atan(t.gap_sectors/(2*t.radius))

local int_delta=math.atan(t.gap_sectors/(2*t.int_radius))



--angles of arcs

local ext_angle=(angle-ext_delta*2)*valpc

local int_angle=(angle-int_delta*2)*valpc



--define colours to use for this sector

if #tcolor==1 then

--plain color

local vR,vG,vB,vA = rgba_to_r_g_b_a(tcolor[1])

cairo_set_source_rgba(cr,vR+tcolor[1].dR*idx,

vG+tcolor[1].dG*idx,

vB+tcolor[1].dB*idx,

vA+tcolor[1].dA*idx )

else

--radient color

local pat=cairo_pattern_create_radial(0,0,t.int_radius,0,0,t.radius)

for i=1, #tcolor do

local vP,vR,vG,vB,vA = tcolor[i][1], rgba_to_r_g_b_a(tcolor[i])

cairo_pattern_add_color_stop_rgba (pat,

vP+tcolor[i].dP*idx,

vR+tcolor[i].dR*idx,

vG+tcolor[i].dG*idx,

vB+tcolor[i].dB*idx,

vA+tcolor[i].dA*idx )

end

cairo_set_source (cr, pat)

cairo_pattern_destroy(pat)

end



--start drawing

cairo_save(cr)

--x axis is parrallel to start of sector

cairo_rotate(cr,angle0-math.pi/2)



local ri,re = t.int_radius ,t.radius



--point A

local angle_a



if t.cap == "p" then

angle_a = int_delta

if t.inverse_arc and type_arc ~="bg" then

angle_a = angle-int_angle-int_delta

end

if not(t.inverse_arc) and type_arc =="bg" then

angle_a = int_delta+int_angle

end

else --t.cap=="r"

angle_a = ext_delta

if t.inverse_arc and type_arc~="bg" then

angle_a = angle-ext_angle-ext_delta

end

if not(t.inverse_arc) and type_arc=="bg" then

angle_a = ext_delta+ext_angle

end

end

local ax,ay = ri*math.cos(angle_a),ri*math.sin(angle_a)





--point B

local angle_b = ext_delta

if t.cap == "p" then

if t.inverse_arc and type_arc ~="bg" then

angle_b = angle-ext_angle-ext_delta

end

if not(t.inverse_arc) and type_arc=="bg" then

angle_b = ext_delta+ext_angle

end

else

if t.inverse_arc and type_arc ~="bg" then

angle_b = angle-ext_angle-ext_delta

end

if not(t.inverse_arc) and type_arc=="bg" then

angle_b = ext_delta+ext_angle

end

end

local bx,by = re*math.cos(angle_b),re*math.sin(angle_b)



-- EXTERNAL ARC B --> C

local b0,b1

if t.inverse_arc then

if type_arc=="bg" then

b0,b1= ext_delta, angle-ext_delta-ext_angle

else

b0,b1= angle-ext_angle-ext_delta, angle-ext_delta

end

else

if type_arc=="bg" then

b0,b1= ext_delta+ext_angle, angle-ext_delta

else

b0,b1= ext_delta, ext_angle+ext_delta

end

end



---POINT D

local angle_c, angle_d

if t.cap == "p" then

angle_d = angle-int_delta

if t.inverse_arc and type_arc=="bg" then

angle_d = angle-int_delta-int_angle

end

if not(t.inverse_arc) and type_arc~="bg" then

angle_d=int_delta+int_angle

end

else

angle_d = angle-ext_delta

if t.inverse_arc and type_arc=="bg" then

angle_d =angle-ext_delta-ext_angle

end

if not(t.inverse_arc) and type_arc~="bg" then

angle_d = ext_angle+ext_delta

end

end

local dx,dy = ri*math.cos(angle_d),ri*math.sin(angle_d)



-- INTERNAL ARC D --> A

local d0,d1

if t.cap=="p" then

if t.inverse_arc then

if type_arc=="bg" then

d0,d1= angle-int_delta-int_angle,int_delta

else

d0,d1= angle-int_delta, angle- int_angle-int_delta

end

else

if type_arc=="bg" then

d0,d1= angle-int_delta, int_delta+int_angle

else

d0,d1= int_delta+int_angle, int_delta

end

end

else

if t.inverse_arc then

if type_arc=="bg" then

d0,d1= angle-ext_delta-ext_angle,ext_delta

else

d0,d1= angle-ext_delta, angle- ext_angle-ext_delta

end

else

if type_arc=="bg" then

d0,d1= angle-ext_delta,ext_delta+ext_angle

else

d0,d1= ext_angle+ext_delta, ext_delta

end

end

end



--draw sector

cairo_move_to(cr,ax,ay)

cairo_line_to(cr,bx,by)

cairo_arc(cr,0,0,re,b0,b1)

cairo_line_to(cr,dx,dy)

cairo_arc_negative(cr,0,0,ri,d0,d1)

cairo_close_path (cr);



--stroke or fill sector

if type_arc=="bd" then

cairo_set_line_width(cr,t.border_size)

cairo_stroke(cr)

else

cairo_fill(cr)

end



cairo_restore(cr)



end

--draw sectors

local n0,n1,n2 = 1,t.sectors,1

if t.inverse_arc then n0,n1,n2 = t.sectors,1,-1 end

local index = 0

for i = n0,n1,n2 do

index = index +1

local valueZ=1

local cstA, cstB = (i-1),i

if t.inverse_arc then cstA,cstB = (t.sectors-i), (t.sectors-i+1) end



if value>valueA *cstA and value<valueA*cstB then

if not t.fill_sector then

valueZ = (value-valueA*cstA)/valueA

end

else

if value<valueA*cstB then valueZ=0 end

end



local start_angle= lastAngle+(i-1)*angleA

if t.foreground ~= false then

draw_sector("fg",start_angle,angleA,valueZ, index)

end

if t.background ~= false then

draw_sector("bg",start_angle,angleA,valueZ, i)

end

if t.border_size>0 then draw_sector("bd",start_angle,angleA,1, i) end

end



cairo_restore(cr)

end



--[[END OF RING-SECTORS WIDGET]]

--[[

Background by londonali1010 (2009)



This script draws a background to the Conky window. It covers the whole of the Conky window, but you can specify rounded corners, if you wish.



To call this script in Conky, use (assuming you have saved this script to ~/scripts/):

lua_load ~/scripts/draw_bg.lua

lua_draw_hook_pre draw_bg



Changelog:

+ v1.0 -- Original release (07.10.2009)

]]



-- Change these settings to affect your background.

-- "corner_r" is the radius, in pixels, of the rounded corners. If you don't want rounded corners, use 0.



corner_r=0



-- Set the colour and transparency (alpha) of your background.



bg_colour=0x000000

bg_alpha=0.3



require 'cairo'

function rgb_to_r_g_b(colour,alpha)

return ((colour / 0x10000) % 0x100) / 255., ((colour / 0x100) % 0x100) / 255., (colour % 0x100) / 255., alpha

end



function conky_draw_bg()

if conky_window==nil then return end

local w=conky_window.width

local h=conky_window.height

local cs=cairo_xlib_surface_create(conky_window.display, conky_window.drawable, conky_window.visual, w, h)

cr=cairo_create(cs)



cairo_move_to(cr,corner_r,0)

cairo_line_to(cr,w-corner_r,0)

cairo_curve_to(cr,w,0,w,0,w,corner_r)

cairo_line_to(cr,w,h-corner_r)

cairo_curve_to(cr,w,h,w,h,w-corner_r,h)

cairo_line_to(cr,corner_r,h)

cairo_curve_to(cr,0,h,0,h,0,h-corner_r)

cairo_line_to(cr,0,corner_r)

cairo_curve_to(cr,0,0,0,0,corner_r,0)

cairo_close_path(cr)



cairo_set_source_rgba(cr,rgb_to_r_g_b(bg_colour,bg_alpha))

cairo_fill(cr)

end

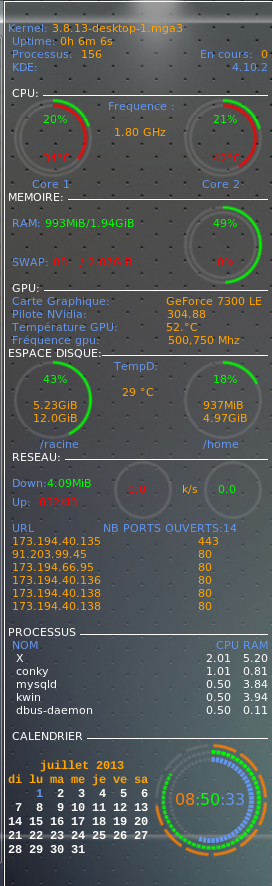

background yes

use_xft yes

xftfont Sans:size=10

xftalpha 1

update_interval 1.0

total_run_times 0

own_window yes

own_window_transparent yes

own_window_argb_visual yes

own_window_type normal

own_window_hints undecorated,below,skip_taskbar,skip_pager

double_buffer yes

minimum_size 260

maximum_width 260

text_buffer_size 1024

draw_shades no

draw_outline no

draw_borders yes

draw_graph_borders no

default_color white

default_outline_color white

alignment top_left

gap_x 20

gap_y 10

no_buffers yes

uppercase no

cpu_avg_samples 2

override_utf8_locale yes

#

color1 white

#

color2 orange

#

color3 cornflowerblue

#

color4 green

#cornflowerblue

color5 red

color6 yellow

# Lua Load

lua_load ~/.conky/draw_bg.lua (attention ceci est mon chemin à modifier en fonction de votre chemin)

lua_draw_hook_pre draw_bg

#lua_load ~/.conky/conky_grey.lua

#lua_draw_hook_pre main

lua_load ~/.conky/horloge.lua

lua_draw_hook_post main_rings



TEXT



${font Sans:size=8}${color3}Kernel: ${color2}$kernel

${color3}Uptime:${color2} $uptime

${color3}Processus: ${color2} $processes${color3}${alignr}En cours: ${color2} $running_processes

${color3}KDE:${alignr} 4.10.2



${color1}CPU: ${hr}

${goto 105}${color3}Frequence :

${color4}${goto 40}${cpu cpu0}%${GOTO 210}${cpu cpu1}%

${color2}$alignc ${freq_g} GHz



${color5}${goto 40}${exec expr `cat /sys/class/hwmon/hwmon0/device/temp2_input` / 1000}°C${color5}${goto 210}${exec expr `cat /sys/class/hwmon/hwmon0/device/temp3_input` / 1000}°C



${color3}Core 1 Core 2

${color1}MEMOIRE: ${hr}



${color3}RAM:${color4} $mem/$memmax ${goto 210}$memperc%





${color3}SWAP:${color5} ${swap} / ${swapmax} ${goto 210} ${swapperc}%



${color1}GPU: ${hr}

${color3}Carte Graphique: ${color2}${execi 1800 nvidia-settings -q gpus |grep '0] (' | cut -d '(' -f 2,2 | sed -e 's/.{1}$//'}

${color3}Pilote NVidia: ${color2}${execi 1800 nvidia-settings -q NvidiaDriverVersion -t}

${color3}Température GPU: ${color2}${exec nvidia-settings -q gpucoretemp | grep '):' | awk '{print $4}'}°C

${color3}Fréquence gpu: ${color2}${execi 60 nvidia-settings -query 0/GPUCurrentClockFreqs |grep Attribute |awk '{print $4}' |cut -c1-7} Mhz

${color1}ESPACE DISQUE:${hr}

${color3}${alignc}TempD:

${color4}${goto 40}${fs_used_perc /}%${color4}${goto 210}${fs_used_perc /home}%

${color2}${alignc}${execi 10 hddtemp -n /dev/sda} °C

${goto 30}${color2}${fs_used /}${goto 200}${fs_used /home}

${goto 30}${color2}${fs_size /}${goto 200}${fs_size /home}



${color3}/racine ${color3}/home

${color1}RESEAU: ${hr}



${color3}Down:${color4}${totaldown eth0}${goto 125}${voffset 6}${color5}${upspeedf eth0}${color2}${goto 175} k/s${goto 215}${color4}${downspeedf eth0}

${color3}Up: ${color5}${totalup eth0}



${color3}URL${goto 100}NB PORTS OUVERTS:${tcp_portmon 1 65535 count}

${color2}${tcp_portmon 1 65535 rip 0}${goto 195}${tcp_portmon 1 65535 rport 0}

${tcp_portmon 1 65535 rip 1}${goto 195}${tcp_portmon 1 65535 rport 1}

${tcp_portmon 1 65535 rip 2}${goto 195}${tcp_portmon 1 65535 rport 2}

${tcp_portmon 1 65535 rip 3}${goto 195}${tcp_portmon 1 65535 rport 3}

${tcp_portmon 1 65535 rip 4}${goto 195}${tcp_portmon 1 65535 rport 4}

${tcp_portmon 1 65535 rip 5}${goto 195}${tcp_portmon 1 65535 rport 5}



${color1}PROCESSUS ${hr}

${color3}NOM ${alignr}CPU ${alignr}RAM

${color1} ${top name 1} ${alignr}${top cpu 1} ${alignr}${top mem 1}

${color1} ${top name 2} ${alignr}${top cpu 2} ${alignr}${top mem 2}

${color1} ${top name 3} ${alignr}${top cpu 3} ${alignr}${top mem 3}

${color1} ${top name 4} ${alignr}${top cpu 4} ${alignr}${top mem 4}

${color1} ${top name 5} ${alignr}${top cpu 5} ${alignr}${top mem 5}



${color1}CALENDRIER ${hr}



${color2}${voffset 3}${font courier:style=bold:size=9}${execpi 300 TODAY=`date +%_d` ; cal -s | sed s/sa$/sa$'${color1}'/ | sed s/"$TODAY"'b'/'${color3}'"$TODAY"'${color1}'/}



${goto 172}${voffset -95}${color ff8000}${font Sans:size=12}${time %H}${color 00ff00}${time :%M}${color 6495EE}${time :%S}

--[[

Ring Meters by londonali1010 (2009)



This script draws percentage meters as rings. It is fully customisable; all options are described in the script.



IMPORTANT: if you are using the 'cpu' function, it will cause a segmentation fault if it tries to draw a ring straight away. The if statement on line 145 uses a delay to make sure that this doesn't happen. It calculates the length of the delay by the number of updates since Conky started. Generally, a value of 5s is long enough, so if you update Conky every 1s, use update_num>5 in that if statement (the default). If you only update Conky every 2s, you should change it to update_num>3; conversely if you update Conky every 0.5s, you should use update_num>10. ALSO, if you change your Conky, is it best to use "killall conky; conky" to update it, otherwise the update_num will not be reset and you will get an error.



To call this script in Conky, use the following (assuming that you save this script to ~/scripts/rings.lua):

lua_load ~/scripts/rings-v1.2.lua

lua_draw_hook_pre ring_stats



Changelog:

+ v1.2 -- Added option for the ending angle of the rings (07.10.2009)

+ v1.1 -- Added options for the starting angle of the rings, and added the "max" variable, to allow for variables that output a numerical value rather than a percentage (29.09.2009)

+ v1.0 -- Original release (28.09.2009)

]]



require 'cairo'



function conky_main_rings()



if (os.date("%l"))=='12' then

heure=(os.date("%M")/60)

else

heure=(os.date("%l"))+(os.date("%M")/60)

end



-- START PARAMETERS HERE

local rings_settings={



{

name="cpu",

arg="cpu0",

max=100,

xc=50,

yc=138,

radius=40,

thickness=5,

gap_sectors=0,

sectors=10,

bg_colour1={{0,0x999999,0},{0.5,0x999999,0.3}, {1,0x999999,0}},

fg_colour1={{0,0x00FF00,0},{0.5,0x00FF00,1}, {1,0x00FF00,0}},

fg_colour2={{0,0X00FF00,0},{0.5,0x00FF00,1}, {1,0x00FF00,0}},

bd_colour1={{0,0X00FF00,1},{0.5,0x00FF00,1}, {1,0x00FF00,1}},

},

{

name="exec",

arg="exec expr `cat /sys/class/hwmon/hwmon0/device/temp2_input` / 1000",

max=100,

xc=50,

yc=138,

radius=35,

thickness=5,

gap_sectors=0,

sectors=10,

bg_colour1={{0,0x999999,0},{0.5,0x999999,0.3}, {1,0x999999,0}},

fg_colour1={{0,0xFF0000,0},{0.5,0xFF0000,1}, {1,0xFF0000,0}},

fg_colour2={{0,0XFF0000,0},{0.5,0xFF0000,1}, {1,0xFF0000,0}},

bd_colour1={{0,0XFF0000,1},{0.5,0xFF0000,1}, {1,0xFF0000,1}},

},

{

name="cpu",

arg="cpu1",

max=100,

xc=220,

yc=138,

radius=40,

thickness=5,

gap_sectors=0,

sectors=10,

bg_colour1={{0,0x999999,0},{0.5,0x999999,0.3}, {1,0x999999,0}},

fg_colour1={{0,0x00FF00,0},{0.5,0x00FF00,1}, {1,0x00FF00,0}},

fg_colour2={{0,0X00FF00,0},{0.5,0x00FF00,1}, {1,0x00FF00,0}},

bd_colour1={{0,0X00FF00,1},{0.5,0x00FF00,1}, {1,0x00FF00,1}},

},

{

name="exec",

arg="exec expr `cat /sys/class/hwmon/hwmon0/device/temp3_input` / 1000",

max=100,

xc=220,

yc=138,

radius=35,

thickness=5,

gap_sectors=0,

sectors=10,

bg_colour1={{0,0x999999,0},{0.5,0x999999,0.3}, {1,0x999999,0}},

fg_colour1={{0,0xFF0000,0},{0.5,0xFF0000,1}, {1,0xFF0000,0}},

fg_colour2={{0,0XFF0000,0},{0.5,0xFF0000,1}, {1,0xFF0000,0}},

bd_colour1={{0,0XFF0000,1},{0.5,0xFF0000,1}, {1,0xFF0000,1}},

},

{

name="memperc",

arg="",

max=100,

xc=220,

yc=245,

radius=40,

thickness=5,

gap_sectors=0,

sectors=10,

bg_colour1={{0,0x999999,0},{0.5,0x999999,0.3}, {1,0x999999,0}},

fg_colour1={{0,0x00FF00,0},{0.5,0x00FF00,1}, {1,0x00FF00,0}},

fg_colour2={{0,0X00FF00,0},{0.5,0x00FF00,1}, {1,0x00FF00,0}},

bd_colour1={{0,0X00FF00,1},{0.5,0x00FF00,1}, {1,0x00FF00,1}},

},

{

name="swapperc",

arg="",

max=100,

xc=220,

yc=245,

radius=35,

thickness=5,

gap_sectors=0,

sectors=10,

bg_colour1={{0,0x999999,0},{0.5,0x999999,0.3}, {1,0x999999,0}},

fg_colour1={{0,0xFF0000,0},{0.5,0xFF0000,1}, {1,0xFF0000,0}},

fg_colour2={{0,0XFF0000,0},{0.5,0xFF0000,1}, {1,0xFF0000,0}},

bd_colour1={{0,0XFF0000,1},{0.5,0xFF0000,1}, {1,0xFF0000,1}},

},

{

name="fs_used_perc",

arg="/home",

max=100,

xc=220,

yc=400,

radius=40,

thickness=5,

gap_sectors=0,

sectors=10,

bg_colour1={{0,0x999999,0},{0.5,0x999999,0.3}, {1,0x999999,0}},

fg_colour1={{0,0x00FF00,0},{0.5,0x00FF00,1}, {1,0x00FF00,0}},

fg_colour2={{0,0X00FF00,0},{0.5,0x00FF00,1}, {1,0x00FF00,0}},

bd_colour1={{0,0X00FF00,1},{0.5,0x00FF00,1}, {1,0x00FF00,1}},

},

{

name="fs_used_perc",

arg="/",

max=100,

xc=50,

yc=400,

radius=40,

thickness=5,

gap_sectors=0,

sectors=10,

bg_colour1={{0,0x999999,0},{0.5,0x999999,0.3}, {1,0x999999,0}},

fg_colour1={{0,0x00FF00,0},{0.5,0x00FF00,1}, {1,0x00FF00,0}},

fg_colour2={{0,0X00FF00,0},{0.5,0x00FF00,1}, {1,0x00FF00,0}},

bd_colour1={{0,0X00FF00,1},{0.5,0x00FF00,1}, {1,0x00FF00,1}},

},

{

name="downspeedf",

arg="eth0",

max=500,

xc=230,

yc=490,

radius=30,

thickness=5,

gap_sectors=0,

sectors=10,

bg_colour1={{0,0x999999,0},{0.5,0x999999,0.3}, {1,0x999999,0}},

fg_colour1={{0,0x00FF00,0},{0.5,0x00FF00,1}, {1,0x00FF00,0}},

fg_colour2={{0,0X00FF00,0},{0.5,0x00FF00,1}, {1,0x00FF00,0}},

bd_colour1={{0,0X00FF00,1},{0.5,0x00FF00,1}, {1,0x00FF00,1}},

},

{

name="upspeedf",

arg="eth0",

max=100,

xc=140,

yc=490,

radius=30,

thickness=5,

gap_sectors=0,

sectors=10,

bg_colour1={{0,0x999999,0},{0.5,0x999999,0.3}, {1,0x999999,0}},

fg_colour1={{0,0xFF0000,0},{0.5,0xFF0000,1}, {1,0xFF0000,0}},

fg_colour2={{0,0XFF0000,0},{0.5,0xFF0000,1}, {1,0xFF0000,0}},

bd_colour1={{0,0XFF0000,1},{0.5,0xFF0000,1}, {1,0xFF0000,1}},

},

{

name="",

arg=heure,

max=11.99,

xc=208,

yc=800,

radius=57,

thickness=5,

gap_sectors=5,

sectors=12,

bg_colour1={{0,0x999999,0},{0.5,0x999999,0.3}, {1,0x999999,0}},

fg_colour1={{0,0xFF8000,0},{0.5,0xFF8000,1}, {1,0xFF8000,0}},

fg_colour2={{0,0XFF8000,0},{0.5,0xFF8000,1}, {1,0xFF8000,0}},

bd_colour1={{0,0XFF8000,1},{0.5,0xFF8000,1}, {1,0xFF8000,1}},

},

{

name="",

arg=(os.date("%M"))+(os.date("%S")/60),

max=59.99,

xc=208,

yc=800,

radius=50,

thickness=5,

start_angle=0,

end_angle=360,

gap_sectors=1,

sectors=60,

fill_sector=false,

bg_colour1={{0,0x999999,0},{0.5,0x999999,0.3}, {1,0x999999,0}},

fg_colour1={{0,0X00FF00,0},{0.5,0X00FF00,1}, {1,0X00FF00,1}},

fg_colour2={{0,0x00FF00,0},{0.5,0x00FF00,1}, {1,0x00FF00,0}},

bd_colour1={{0,0X00FF00,1},{0.5,0x00FF00,1}, {1,0x00FF00,1}},

},

{

name="time",

arg="%S",

max=60,

xc=208,

yc=800,

radius=43,

thickness=5,

start_angle=0,

end_angle=360,

sectors=60,

fill_sector=false,

bg_colour1={{0,0x999999,0},{0.5,0x999999,0.3}, {1,0x999999,0}},

fg_colour1={{1,0X6495EE,1},{1,0x6495EE,1}, {1,0x6495EE,1}},

fg_colour2={{1,0X6495EE,1},{1,0x6495EE,1}, {1,0x6495EE,1}},

bd_colour1={{0,0X6495EE,1},{0.5,0x6495EE,1}, {1,0x6495EE,1}},

},



}



--END OF PARAMETERS HERE



--main function



--if conky_window==nil then return end



local cs=cairo_xlib_surface_create(conky_window.display,

conky_window.drawable,

conky_window.visual, conky_window.width, conky_window.height)

local cr=cairo_create(cs)



if tonumber(conky_parse('${updates}'))>3 then

for i in pairs(rings_settings) do

draw_ring(cr,rings_settings[i])

end

end



cairo_destroy(cr)

end







function draw_ring(cr, t)



local function rgba_to_r_g_b_a(tcolour)

local colour,alpha=tcolour[2],tcolour[3]

return ((colour / 0x10000) % 0x100) / 255.,

((colour / 0x100) % 0x100) / 255., (colour % 0x100) / 255., alpha

end





local function calc_delta(tcol1,tcol2)

--calculate deltas P R G B A to table_colour 1



for x = 1, #tcol1 do

tcol1[x].dA = 0

tcol1[x].dP = 0

tcol1[x].dR = 0

tcol1[x].dG = 0

tcol1[x].dB = 0

if tcol2~=nil and #tcol1 == #tcol2 then

local r1,g1,b1,a1 = rgba_to_r_g_b_a(tcol1[x])

local r2,g2,b2,a2 = rgba_to_r_g_b_a(tcol2[x])

tcol1[x].dP = (tcol2[x][1]-tcol1[x][1])/t.sectors

tcol1[x].dR = (r2-r1)/t.sectors

tcol1[x].dG = (g2-g1)/t.sectors

tcol1[x].dB = (b2-b1)/t.sectors

tcol1[x].dA = (a2-a1)/t.sectors



end

end



return tcol1

end



--check values

local function setup(t)

if t.name==nil and t.arg==nil then

print ("No input values ... use parameters 'name'" +

" with 'arg' or only parameter 'arg' ")

return

end



if t.max==nil then

print ("No maximum value defined, use 'max'")

print ("for name=" .. t.name)

print ("with arg=" .. t.arg)

return

end

if t.name==nil then t.name="" end

if t.arg==nil then t.arg="" end



if t.xc==nil then t.xc=conky_window.width/2 end

if t.yc==nil then t.yc=conky_window.height/2 end

if t.thickness ==nil then t.thickness = 10 end

if t.radius ==nil then t.radius =conky_window.width/4 end

if t.start_angle==nil then t.start_angle =0 end

if t.end_angle==nil then t.end_angle=360 end

if t.bg_colour1==nil then

t.bg_colour1={{0,0x00ffff,0.1},{0.5,0x00FFFF,0.5},{1,0x00FFFF,0.1}}

end

if t.fg_colour1==nil then

t.fg_colour1={{0,0x00FF00,0.1},{0.5,0x00FF00,1},{1,0x00FF00,0.1}}

end

if t.bd_colour1==nil then

t.bd_colour1={{0,0xFFFF00,0.5},{0.5,0xFFFF00,1},{1,0xFFFF00,0.5}}

end

if t.sectors==nil then t.sectors=10 end

if t.gap_sectors==nil then t.gap_sectors=1 end

if t.fill_sector==nil then t.fill_sector=false end

if t.sectors==1 then t.fill_sector=false end

if t.border_size==nil then t.border_size=0 end

if t.cap==nil then t.cap="p" end

--some checks

if t.thickness>t.radius then t.thickness=t.radius*0.1 end

t.int_radius = t.radius-t.thickness



--check colors tables

for i=1, #t.bg_colour1 do

if #t.bg_colour1[i]~=3 then t.bg_colour1[i]={1,0xFFFFFF,0.5} end

end

for i=1, #t.fg_colour1 do

if #t.fg_colour1[i]~=3 then t.fg_colour1[i]={1,0xFF0000,1} end

end

for i=1, #t.bd_colour1 do

if #t.bd_colour1[i]~=3 then t.bd_colour1[i]={1,0xFFFF00,1} end

end



if t.bg_colour2~=nil then

for i=1, #t.bg_colour2 do

if #t.bg_colour2[i]~=3 then t.bg_colour2[i]={1,0xFFFFFF,0.5} end

end

end

if t.fg_colour2~=nil then

for i=1, #t.fg_colour2 do

if #t.fg_colour2[i]~=3 then t.fg_colour2[i]={1,0xFF0000,1} end

end

end

if t.bd_colour2~=nil then

for i=1, #t.bd_colour2 do

if #t.bd_colour2[i]~=3 then t.bd_colour2[i]={1,0xFFFF00,1} end

end

end



if t.start_angle>=t.end_angle then

local tmp_angle=t.end_angle

t.end_angle= t.start_angle

t.start_angle = tmp_angle

-- print ("inversed angles")

if t.end_angle-t.start_angle>360 and t.start_angle>0 then

t.end_angle=360+t.start_angle

print ("reduce angles")

end



if t.end_angle+t.start_angle>360 and t.start_angle<=0 then

t.end_angle=360+t.start_angle

print ("reduce angles")

end



if t.int_radius<0 then t.int_radius =0 end

if t.int_radius>t.radius then

local tmp_radius=t.radius

t.radius=t.int_radius

t.int_radius=tmp_radius

print ("inversed radius")

end

if t.int_radius==t.radius then

t.int_radius=0

print ("int radius set to 0")

end

end



t.fg_colour1 = calc_delta(t.fg_colour1,t.fg_colour2)

t.bg_colour1 = calc_delta(t.bg_colour1,t.bg_colour2)

t.bd_colour1 = calc_delta(t.bd_colour1,t.bd_colour2)

end



if t.draw_me == true then t.draw_me = nil end

if t.draw_me ~= nil and conky_parse(tostring(t.draw_me)) ~= "1" then return end

--initialize table

setup(t)



--initialize cairo context

cairo_save(cr)

cairo_translate(cr,t.xc,t.yc)

cairo_set_line_join (cr, CAIRO_LINE_JOIN_ROUND)

cairo_set_line_cap (cr, CAIRO_LINE_CAP_ROUND)



--get value

local value = 0

if t.name ~="" then

value = tonumber(conky_parse(string.format('${%s %s}', t.name, t.arg)))

else

value = tonumber(t.arg)

end

if value==nil then value =0 end



--initialize sectors

--angle of a sector :

local angleA = ((t.end_angle-t.start_angle)/t.sectors)*math.pi/180

--value of a sector :

local valueA = t.max/t.sectors

--first angle of a sector :

local lastAngle = t.start_angle*math.pi/180





local function draw_sector(type_arc,angle0,angle,valpc, idx)



--this function draws a portion of arc

--type of arc, angle0 = strating angle, angle= angle of sector,

--valpc = percentage inside the sector, idx = sctor number #

local tcolor

if type_arc=="bg" then --background

if valpc==1 then return end

tcolor=t.bg_colour1

elseif type_arc=="fg" then --foreground

if valpc==0 then return end

tcolor=t.fg_colour1

elseif type_arc=="bd" then --border

tcolor=t.bd_colour1

end



--angles equivalents to gap_sector

local ext_delta=math.atan(t.gap_sectors/(2*t.radius))

local int_delta=math.atan(t.gap_sectors/(2*t.int_radius))



--angles of arcs

local ext_angle=(angle-ext_delta*2)*valpc

local int_angle=(angle-int_delta*2)*valpc



--define colours to use for this sector

if #tcolor==1 then

--plain color

local vR,vG,vB,vA = rgba_to_r_g_b_a(tcolor[1])

cairo_set_source_rgba(cr,vR+tcolor[1].dR*idx,

vG+tcolor[1].dG*idx,

vB+tcolor[1].dB*idx,

vA+tcolor[1].dA*idx )

else

--radient color

local pat=cairo_pattern_create_radial(0,0,t.int_radius,0,0,t.radius)

for i=1, #tcolor do

local vP,vR,vG,vB,vA = tcolor[i][1], rgba_to_r_g_b_a(tcolor[i])

cairo_pattern_add_color_stop_rgba (pat,

vP+tcolor[i].dP*idx,

vR+tcolor[i].dR*idx,

vG+tcolor[i].dG*idx,

vB+tcolor[i].dB*idx,

vA+tcolor[i].dA*idx )

end

cairo_set_source (cr, pat)

cairo_pattern_destroy(pat)

end



--start drawing

cairo_save(cr)

--x axis is parrallel to start of sector

cairo_rotate(cr,angle0-math.pi/2)



local ri,re = t.int_radius ,t.radius



--point A

local angle_a



if t.cap == "p" then

angle_a = int_delta

if t.inverse_arc and type_arc ~="bg" then

angle_a = angle-int_angle-int_delta

end

if not(t.inverse_arc) and type_arc =="bg" then

angle_a = int_delta+int_angle

end

else --t.cap=="r"

angle_a = ext_delta

if t.inverse_arc and type_arc~="bg" then

angle_a = angle-ext_angle-ext_delta

end

if not(t.inverse_arc) and type_arc=="bg" then

angle_a = ext_delta+ext_angle

end

end

local ax,ay = ri*math.cos(angle_a),ri*math.sin(angle_a)





--point B

local angle_b = ext_delta

if t.cap == "p" then

if t.inverse_arc and type_arc ~="bg" then

angle_b = angle-ext_angle-ext_delta

end

if not(t.inverse_arc) and type_arc=="bg" then

angle_b = ext_delta+ext_angle

end

else

if t.inverse_arc and type_arc ~="bg" then

angle_b = angle-ext_angle-ext_delta

end

if not(t.inverse_arc) and type_arc=="bg" then

angle_b = ext_delta+ext_angle

end

end

local bx,by = re*math.cos(angle_b),re*math.sin(angle_b)



-- EXTERNAL ARC B --> C

local b0,b1

if t.inverse_arc then

if type_arc=="bg" then

b0,b1= ext_delta, angle-ext_delta-ext_angle

else

b0,b1= angle-ext_angle-ext_delta, angle-ext_delta

end

else

if type_arc=="bg" then

b0,b1= ext_delta+ext_angle, angle-ext_delta

else

b0,b1= ext_delta, ext_angle+ext_delta

end

end



---POINT D

local angle_c, angle_d

if t.cap == "p" then

angle_d = angle-int_delta

if t.inverse_arc and type_arc=="bg" then

angle_d = angle-int_delta-int_angle

end

if not(t.inverse_arc) and type_arc~="bg" then

angle_d=int_delta+int_angle

end

else

angle_d = angle-ext_delta

if t.inverse_arc and type_arc=="bg" then

angle_d =angle-ext_delta-ext_angle

end

if not(t.inverse_arc) and type_arc~="bg" then

angle_d = ext_angle+ext_delta

end

end

local dx,dy = ri*math.cos(angle_d),ri*math.sin(angle_d)



-- INTERNAL ARC D --> A

local d0,d1

if t.cap=="p" then

if t.inverse_arc then

if type_arc=="bg" then

d0,d1= angle-int_delta-int_angle,int_delta

else

d0,d1= angle-int_delta, angle- int_angle-int_delta

end

else

if type_arc=="bg" then

d0,d1= angle-int_delta, int_delta+int_angle

else

d0,d1= int_delta+int_angle, int_delta

end

end

else

if t.inverse_arc then

if type_arc=="bg" then

d0,d1= angle-ext_delta-ext_angle,ext_delta

else

d0,d1= angle-ext_delta, angle- ext_angle-ext_delta

end

else

if type_arc=="bg" then

d0,d1= angle-ext_delta,ext_delta+ext_angle

else

d0,d1= ext_angle+ext_delta, ext_delta

end

end

end



--draw sector

cairo_move_to(cr,ax,ay)

cairo_line_to(cr,bx,by)

cairo_arc(cr,0,0,re,b0,b1)

cairo_line_to(cr,dx,dy)

cairo_arc_negative(cr,0,0,ri,d0,d1)

cairo_close_path (cr);



--stroke or fill sector

if type_arc=="bd" then

cairo_set_line_width(cr,t.border_size)

cairo_stroke(cr)

else

cairo_fill(cr)

end



cairo_restore(cr)



end

--draw sectors

local n0,n1,n2 = 1,t.sectors,1

if t.inverse_arc then n0,n1,n2 = t.sectors,1,-1 end

local index = 0

for i = n0,n1,n2 do

index = index +1

local valueZ=1

local cstA, cstB = (i-1),i

if t.inverse_arc then cstA,cstB = (t.sectors-i), (t.sectors-i+1) end



if value>valueA *cstA and value<valueA*cstB then

if not t.fill_sector then

valueZ = (value-valueA*cstA)/valueA

end

else

if value<valueA*cstB then valueZ=0 end

end



local start_angle= lastAngle+(i-1)*angleA

if t.foreground ~= false then

draw_sector("fg",start_angle,angleA,valueZ, index)

end

if t.background ~= false then

draw_sector("bg",start_angle,angleA,valueZ, i)

end

if t.border_size>0 then draw_sector("bd",start_angle,angleA,1, i) end

end



cairo_restore(cr)

end



--[[END OF RING-SECTORS WIDGET]]
