Le 23/01/2013 à 13h35

Reprise du message précédent



le dernier tout en un 4 à 5 %au repos

En image:


Edité par loutch Le 28/01/2013 à 23h12


Linuxmint 19.1 Tessa - Mageia 7rc Mate sur ssd sur HP Pavilion g7
Xubuntu 18.04 LTS et 19.04 en xfce sur ASUS Rog STRIX


Lotherath Membre non connecté

Rang

Avatar

Inscrit le : 21/11/2011 à 00h10

Localisation : Balma (31)

Messages: 228

Le 16/02/2013 à 12h22
Avec du retard, le mien qui est un mix entre plusieurs codes:







le code:



Caché :
background yes

use_xft yes

xftfont Sans:size=8

xftalpha 1

update_interval 1.0

total_run_times 0

own_window yes

own_window_transparent yes

own_window_argb_visual yes

own_window_type normal

own_window_hints undecorated,below,sticky,skip_taskbar,skip_pager

double_buffer yes

minimum_size 250 800

maximum_width 250

text_buffer_size 4096

draw_shades yes

draw_outline no

draw_borders no

draw_graph_borders yes

default_color white

default_shade_color black

default_outline_color white

alignment top_right

gap_x 10

gap_y 10

no_buffers yes

uppercase no

cpu_avg_samples 2

override_utf8_locale yes

#white

color1 white

#white

color2 white

#white

color3 white

#blue

color4 white

#red

color5 white



# Lua Load #

#lua_load ~/.conky/ring.lua

#lua_draw_hook_pre clock_rings



TEXT



Mageia Linux 2



Kernel: ${color white}$kernel



#Utilisation moyenne des 2 cores

#${color red}${cpugraph cpu0}

${color white}Core 1 $alignr Core 2

${color red}${cpugraph cpu1 25,120} $alignr${cpugraph cpu2 25,120}

${color white} FREQUENCES % d'utilisation

Frequence totale: ${color FF8000}${freq_g}Ghz ${color white}${cpu cpu0}% ${color red}${alignr}${cpubar cpu0 5,50}

${color white}Frequence (Core 1): ${color FF8000}${freq_g cpu1}Ghz ${color white}${cpu cpu1}% ${color red}${alignr}${cpubar cpu1 5,50}

${color white}Frequence (Core 2): ${color FF8000}${freq_g cpu2}Ghz ${color white}${cpu cpu2}% ${color red}${alignr}${cpubar cpu2 5,50}



${color white} MEMOIRE:

${color3}RAM:${color2} $mem/$memmax ${goto 150}$memperc% ${goto 185}${color 00408A}${membar}${color2}

${color3}SWAP:${color2} ${swap} / ${swapmax} ${goto 150} ${swapperc}%${goto 185}${color 00408A}${swapbar}



${color white} MACHINE:

${color white}Vitesse ventilateur processeurs: ${color FF8000}${hwmon 0 fan 1} RPM

${color}Temperature CPU 1: ${color FF8000}${hwmon 0 temp 1}°C

${color}Temperature CPU 2: ${color FF8000}${hwmon 0 temp 2}°C

${color}Temperature carte graphique: ${color FF8000}${exec nvidia-settings -q GPUCoreTemp -t}°C

${color white}Temperature disque dur: ${color FF8000}${execi 10 hddtemp -n /dev/sda}°C



${color3}CHARGE: ${hr}${color2}

Nombre de processus en cours: ${color FF8000}$processes ${color white}Run: ${color FF8000}$running_processes CPU Temp: ${execi 1100 cat /proc/acpi/thermal_zone/THRM/temperature | grep -o "[0-9]* C"}

${color3}Processus$alignr${color2}${color3} PID CPU MEM${color2}

${top name 1} $alignr${top pid 1} ${top cpu 1} ${top mem 1}

${color #CACACA}${top name 2} $alignr${top pid 2} ${top cpu 2} ${top mem 2}

${color #A2A2A2}${top name 3} $alignr${top pid 3} ${top cpu 3} ${top mem 3}

${color #787878}${top name 4} $alignr${top pid 4} ${top cpu 4} ${top mem 4}



${color3}Memoire vive$alignr${color2}${color3} PID CPU MEM${color2}

${top_mem name 1} $alignr${top_mem pid 1} ${top_mem cpu 1} ${top_mem mem 1}

${color #CACACA}${top_mem name 2} $alignr${top_mem pid 2} ${top_mem cpu 2} ${top_mem mem 2}

${color #A2A2A2}${top_mem name 3} $alignr${top_mem pid 3} ${top_mem cpu 3} ${top_mem mem 3}

${color #787878}${top_mem name 4} $alignr${top_mem pid 4} ${top_mem cpu 4} ${top_mem mem 4}



${color3}RESEAU: ${hr}${color2}

${color3}${alignc}Adresse Ip eth0 : ${color FF8000}${addr eth0}${color2}



${color3}Down:${color2} ${totaldown eth0}${goto 120}${downspeedf eth0}k/s

${color3}Up:${color2} ${totalup eth0}${goto 120}${upspeedf eth0}k/s

${downspeedgraph eth0 25,120 ffc11f 8b4b0b}$alignr${upspeedgraph eth0 25,120 ffc11f 8b4b0b}

${voffset -28}${goto 50}DOWN${goto 190}UP



#${font sans-serif:size=8,weight:bold}${color}IP${alignr}PORT

#${font sans-serif:size=8,weight:normal}${color1}${tcp_portmon 1 65535 rip 0}${alignr 1}${tcp_portmon 1 65535 rport 0}

#${font sans-serif:size=8,weight:normal}${color1}${tcp_portmon 1 65535 rip 1}${alignr 1}${tcp_portmon 1 65535 rport 1}

#${font sans-serif:size=8,weight:normal}${color1}${tcp_portmon 1 65535 rip 2}${alignr 1}${tcp_portmon 1 65535 rport 2}

#${font sans-serif:size=8,weight:normal}${color1}${tcp_portmon 1 65535 rip 3}${alignr 1}${tcp_portmon 1 65535 rport 3}

#${font sans-serif:size=8,weight:normal}${color1}${tcp_portmon 1 65535 rip 4}${alignr 1}${tcp_portmon 1 65535 rport 4}

#${font sans-serif:size=8,weight:normal}${color1}${tcp_portmon 1 65535 rip 5}${alignr 1}${tcp_portmon 1 65535 rport 5}

#${font sans-serif:size=8,weight:normal}${color1}${tcp_portmon 1 65535 rip 6}${alignr 1}${tcp_portmon 1 65535 rport 6}

#${font sans-serif:size=8,weight:normal}${color1}${tcp_portmon 1 65535 rip 7}${alignr 1}${tcp_portmon 1 65535 rport 7}

#${font sans-serif:size=8,weight:normal}${color1}${tcp_portmon 1 65535 rip 8}${alignr 1}${tcp_portmon 1 65535 rport 8}

#${font sans-serif:size=8,weight:normal}${color1}${tcp_portmon 1 65535 rip 9}${alignr 1}${tcp_portmon 1 65535 rport 9}

#${font sans-serif:size=8,weight:normal}${color1}${tcp_portmon 1 65535 rip 10}${alignr 1}${tcp_portmon 1 65535 rport 10}

#${font sans-serif:size=8,weight:normal}${color1}${tcp_portmon 1 65535 rip 11}${alignr 1}${tcp_portmon 1 65535 rport 11}

#${font sans-serif:size=8,weight:normal}${color1}${tcp_portmon 1 65535 rip 12}${alignr 1}${tcp_portmon 1 65535 rport 12}

#${font sans-serif:size=8,weight:normal}${color1}${tcp_portmon 1 65535 rip 13}${alignr 1}${tcp_portmon 1 65535 rport 13}

#${font sans-serif:size=8,weight:normal}${color1}${tcp_portmon 1 65535 rip 14}${alignr 1}${tcp_portmon 1 65535 rport 14}
Edité par Lotherath Le 16/02/2013 à 12h24


Mon PC: tour assemblée maison avec carte mère Asus, dual-core Amd athlon 5500 plus (avec ventirad Zalman pour refroidir la bête), 4 Go de ram, carte graphique MSI GT 630, disque dur 500 Go - 100 % Mageia avec KDE.

Adrien.D Membre non connecté

Rang

Avatar

Webmaster Admin système

Inscrit le : 30/05/2011 à 18h36

Localisation : Dijon-21-FRA

Messages: 10322

Le 11/03/2013 à 19h59

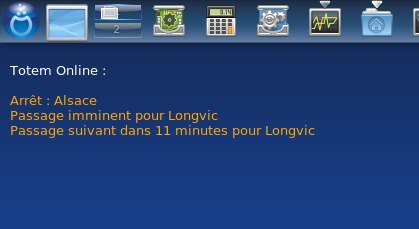

Et voila, deux jours de réflexion avec mon script Perl et ça y est, il est exécuté avec conky, c'est super :super:



Mais bon, pour un non initié au langage perl, le script serait imbuvable.

Il va rechercher sur le site divia.fr les infos des prochains passages d'un de mes arrêts :ghee:
(Rafraichissement toutes les 30 secondes)

Reste à optimiser le code et rendre le script personnalisable, puisque les variables sont en dur dedans :gene2l: Mais je voulais tester :P


Config : PC Fixe : X470 GAMING PRO- AMD Ryzen 5 2600X - 16Go RAM - Radeon RX 560 (Pilote libre) - user_bar_calculate - GNOME Desktop - Kernel 4.19 LTS
Vice président de l'association COAGUL ("Côte-d’Or - Association Générale des Utilisateurs de Logiciels libres")
Webmaster de MageiaLinuxOnline uniquement. Pas de support de ma part.
Site web
Adrien.D Membre non connecté

Rang

Avatar

Webmaster Admin système

Inscrit le : 30/05/2011 à 18h36

Localisation : Dijon-21-FRA

Messages: 10322

Le 07/04/2013 à 10h47
Salut nmkrnrmnrnkmnrkmr,

Il faut voir 3 trucs :] :

- Avoir une NVidia
- Avoir installé les pilotes proprio d'installés
- Avoir nvidia-settings d'installé.

Code BASH :
urpmf nvidia-settings | grep bin/nvidia-settings
x11-driver-video-nvidia-current:/usr/bin/nvidia-settings
x11-driver-video-nvidia-current:/usr/lib64/nvidia-current/bin/nvidia-settings
x11-driver-video-nvidia-current:/usr/bin/nvidia-settings
x11-driver-video-nvidia-current:/usr/lib64/nvidia-current/bin/nvidia-settings
x11-driver-video-nvidia96xx:/usr/bin/nvidia-settings
x11-driver-video-nvidia96xx:/usr/lib64/nvidia96xx/bin/nvidia-settings
x11-driver-video-nvidia173:/usr/bin/nvidia-settings
x11-driver-video-nvidia173:/usr/lib64/nvidia173/bin/nvidia-settings


Pour les partitions Windows, ça peut être utile si on a des documents communs Windows/Linux dessus ?

Merci

:merci:


Config : PC Fixe : X470 GAMING PRO- AMD Ryzen 5 2600X - 16Go RAM - Radeon RX 560 (Pilote libre) - user_bar_calculate - GNOME Desktop - Kernel 4.19 LTS
Vice président de l'association COAGUL ("Côte-d’Or - Association Générale des Utilisateurs de Logiciels libres")
Webmaster de MageiaLinuxOnline uniquement. Pas de support de ma part.
Site web
thierryR Membre non connecté

Rang

Avatar

Inscrit le : 02/02/2010 à 13h51

Localisation : Chalons en Champagne

Messages: 6758

Le 09/04/2013 à 19h26
Voici le mien. Il n'y a pas fioriture, mais il va bien. Choui content.


débusqueur de bugs et chercheur en améliorations

Amicalement vôtre.

Kernel: 4.4.92-desktop-1.mga5 x86_64 (64 bit) Desktop: KDE 4.14.35 Distro: Mageia 5 thornicroft
Machine: Mobo: ASUSTeK model: X751SA v: 1.0 Bios: American Megatrends v: X751SA.403
CPU: Quad core Intel Pentium N3710 (-MCP-) cache: 1024 KB Graphics: Card: Intel Atom/Celeron/Pentium Processor x5-E8000/J3xxx/N3xxx Integrated Graphics Controller
Site web
loutch Membre non connecté

Rang

Avatar

Inscrit le : 07/07/2010 à 13h05

Localisation : Sarreguemines

Messages: 1385

Le 28/04/2013 à 18h11




modification du conkyr et ajout d'un second pour la météo:



conkyrc météo



Caché :
# -- Conky settings -- #

background no

update_interval 1



cpu_avg_samples 2

net_avg_samples 2



override_utf8_locale yes



double_buffer yes

no_buffers no



text_buffer_size 2048

# -- Window specifications -- #

own_window_argb_visual yes

own_window_class normal

own_window_title Meteo

own_window yes

own_window_type normal

own_window_transparent yes

own_window_hints undecorate,skip_taskbar,skip_pager,below



border_inner_margin 0

border_outer_margin 0



minimum_size 450 250

maximum_width 455





alignment tr

gap_x 50

gap_y 680



# -- Graphics settings -- #

draw_shades no

draw_outline no

draw_borders no

draw_graph_borders yes



# -- Text settings -- #

use_xft yes

xftfont MaiandraGD:size=24

xftalpha 0.4



uppercase no



default_color 8b8b8b



# -- Déclaration template -- #

template0 ${lua fDrawImage ~/.conky/conky-meteo/meteo6jours/fon/1 2 3 4 5} # -- images fond -- #

template1 ${lua Meteo_1 2 3 4 5 6} # -- gestion météo --#

template2 ${lua Meteo_1 2 3 4 5 6 7} # -- icônes météo -- 2=répertoire icônes 3=position 4=taille 5=jour (pour les prévisions) #

template3 ${lua Lune_1}

template4 ${lua_parse Images_1 2 3 60 4} # -- Appelle image -- 2=position 3=taille 4=jour (pour les prévisions) #



lua_load ~/.conky/conky-meteo/meteo_lua_2/scripts/meteo2.lua



lua_startup_hook init ~/.conky/conky-meteo/meteo6jours/meteo.cfg



TEXT



#### Lancement du script récupérant les données météo ####

${template1 Maj}

#### Premier cadre ####

##### Heure #####

${voffset -55}${font LED_mono :style=Medium:size=20}${color white}${goto 30}${time %H}:${goto 68}${time %M}${font LED_mono :size=25:style=Medium}${color white}${goto 235}

##### Heure mise à jour #####

${voffset 0}${color white}${font Helvetica LT Std :size=8}${alignc 96}Dernière mise à jour : ${template1 Heure}h${template1 Minute}

##### Date et Saints du jour #####

${voffset -65}${color white}${font Helvetica LT Std :size=12:style=Bold}${alignc -108}${exec date "+%A %d %B %Y"|sed 's/^.| [a-z]/U&/g'}

##### Affichage infos vent ######

${voffset 20}${color white}${font Helvetica LT Std:style=Bold:size=9}${goto 340}Vent : ${template1 VentDirP}

${color white}${font Helvetica LT Std:style=Bold:size=9}${goto 340}Vitesse : ${template1 VentForce} km/h

${goto 340}Pluie : ${template1 Jour_NivPrec 1} mm

##### ville #####

${voffset 6}${goto 15}${font Helvetica LT Std :size=10 style:bold}${color white}${template1 Ville} : ${font Helvetica LT Std :size=10}${color white}${template1 CondMeteo}${font Helvetica LT Std :size=10} / ${template1 TempAct}°C





##### Affichage temperature #####

${alignc 187}${voffset -5}${font Ubuntu :size=8:style=bold}${color red}${template1 Jour_Temp 2}°${color white}/${color lightblue}${template1 Nuit_Temp 2}°

${alignc 112}${voffset -13}${color red}${template1 Jour_Temp 3}°${color white}/${color lightblue}${template1 Nuit_Temp 3}°

${alignc 37}${voffset -13}${color red}${template1 Jour_Temp 4}°${color white}/${color lightblue}${template1 Nuit_Temp 4}°

${alignc -38}${voffset -13}${color red}${template1 Jour_Temp 5}°${color white}/${color lightblue}${template1 Nuit_Temp 5}°

${alignc -113}${voffset -13}${color red}${template1 Jour_Temp 6}°${color white}/${color lightblue}${template1 Nuit_Temp 6}°

${alignc -188}${voffset -13}${color red}${template1 Jour_Temp 7}°${color white}/${color lightblue}${template1 Nuit_Temp 7}°

##### Affichage vitesse du vent #####

${alignc 187}${font Ubuntu :size=8:style=bold}${color white}${voffset 39}${template1 Jour_VentForce 2}${font Ubuntu :size=6:style=bold} km/h

${alignc 112}${voffset -12}${font Ubuntu :size=8:style=bold}${template1 Jour_VentForce 3}${font Ubuntu :size=6:style=bold} km/h

${alignc 37}${voffset -12}${font Ubuntu :size=8:style=bold}${template1 Jour_VentForce 4}${font Ubuntu :size=6:style=bold} km/h

${alignc -38}${voffset -12}${font Ubuntu :size=8:style=bold}${template1 Jour_VentForce 5}${font Ubuntu :size=6:style=bold} km/h

${alignc -113}${font Ubuntu :size=8:style=bold}${voffset -12}${template1 Jour_VentForce 6}${font Ubuntu :size=6:style=bold} km/h

${alignc -188}${font Ubuntu :size=8:style=bold}${voffset -12}${template1 Jour_VentForce 7}${font Ubuntu :size=6:style=bold} km/h

##### Affichage Date #####

${voffset -2}${font Ubuntu :size=10}${color white}${alignc 187}${template1 Jour %a_%d 2}

${voffset -16}${alignc 112}${template1 Jour %a_%d 3}

${voffset -16}${alignc 37}${template1 Jour %a_%d 4}

${voffset -16}${alignc -38}${template1 Jour %a_%d 5}

${voffset -16}${alignc -113}${template1 Jour %a_%d 6}

${voffset -16}${alignc -188}${template1 Jour %a_%d 7}



#### Affichage des cadres utilisés dans le conky ####

${voffset -935}

#### premier cadre ####

${template0 base.png 0 40 450 110}

${template0 flip_bg.png 24 10 100 100}

${template0 flip_bg.png 134 10 100 100}

#### Second cadre ####

${template0 base.png 0 155 450 80}

#### icônes premier cadre ####

${template2 IconeM ~/.conky/conky-meteo/meteo_lua_2/icones 205 75 132 70}

#### icônes Second cadre ####

${template2 Jour_IconeM ~/.conky/conky-meteo/meteo_lua_2/icones 0 168 75 45 2}

${template2 Jour_IconeM ~/.conky/conky-meteo/meteo_lua_2/icones 75 168 75 45 3}

${template2 Jour_IconeM ~/.conky/conky-meteo/meteo_lua_2/icones 150 168 75 45 4}

${template2 Jour_IconeM ~/.conky/conky-meteo/meteo_lua_2/icones 225 168 75 45 5}

${template2 Jour_IconeM ~/.conky/conky-meteo/meteo_lua_2/icones 300 168 75 45 6}

${template2 Jour_IconeM ~/.conky/conky-meteo/meteo_lua_2/icones 375 168 75 45 7}









Edité par loutch Le 28/04/2013 à 18h16


Linuxmint 19.1 Tessa - Mageia 7rc Mate sur ssd sur HP Pavilion g7
Xubuntu 18.04 LTS et 19.04 en xfce sur ASUS Rog STRIX


thierryR Membre non connecté

Rang

Avatar

Inscrit le : 02/02/2010 à 13h51

Localisation : Chalons en Champagne

Messages: 6758

Le 30/04/2013 à 10h09
Ton 2e conky ressemble étrangement au plasmoïde yawp . Tu t'en ai inspiré ?


débusqueur de bugs et chercheur en améliorations

Amicalement vôtre.

Kernel: 4.4.92-desktop-1.mga5 x86_64 (64 bit) Desktop: KDE 4.14.35 Distro: Mageia 5 thornicroft
Machine: Mobo: ASUSTeK model: X751SA v: 1.0 Bios: American Megatrends v: X751SA.403
CPU: Quad core Intel Pentium N3710 (-MCP-) cache: 1024 KB Graphics: Card: Intel Atom/Celeron/Pentium Processor x5-E8000/J3xxx/N3xxx Integrated Graphics Controller
Site web
loutch Membre non connecté

Rang

Avatar

Inscrit le : 07/07/2010 à 13h05

Localisation : Sarreguemines

Messages: 1385

Le 02/05/2013 à 10h32
hello

non trouver sur le forum de linuxmint .fr


@+ Edité par loutch Le 09/05/2013 à 12h32


Linuxmint 19.1 Tessa - Mageia 7rc Mate sur ssd sur HP Pavilion g7
Xubuntu 18.04 LTS et 19.04 en xfce sur ASUS Rog STRIX


loutch Membre non connecté

Rang

Avatar

Inscrit le : 07/07/2010 à 13h05

Localisation : Sarreguemines

Messages: 1385

Le 18/05/2013 à 20h01


Premier éssais avec du lua :





Linuxmint 19.1 Tessa - Mageia 7rc Mate sur ssd sur HP Pavilion g7
Xubuntu 18.04 LTS et 19.04 en xfce sur ASUS Rog STRIX


loutch Membre non connecté

Rang

Avatar

Inscrit le : 07/07/2010 à 13h05

Localisation : Sarreguemines

Messages: 1385

Le 27/05/2013 à 10h30




Pour ce que cela intérraissent un petit lua pour ajouter un fond au conky pour mieux le voir avec des fonds clairs



Créer un fichier texte et le nommer :



draw_bg.lua



et y coller ceci :



Caché :
--[[

Background by londonali1010 (2009)



This script draws a background to the Conky window. It covers the whole of the Conky window, but you can specify rounded corners, if you wish.



To call this script in Conky, use (assuming you have saved this script to ~/scripts/):

lua_load ~/scripts/draw_bg.lua

lua_draw_hook_pre draw_bg



Changelog:

+ v1.0 -- Original release (07.10.2009)

]]



-- Change these settings to affect your background.

-- "corner_r" is the radius, in pixels, of the rounded corners. If you don't want rounded corners, use 0.



corner_r=0



-- Set the colour and transparency (alpha) of your background.



bg_colour=0x000000

bg_alpha=0.3



require 'cairo'

function rgb_to_r_g_b(colour,alpha)

return ((colour / 0x10000) % 0x100) / 255., ((colour / 0x100) % 0x100) / 255., (colour % 0x100) / 255., alpha

end



function conky_draw_bg()

if conky_window==nil then return end

local w=conky_window.width

local h=conky_window.height

local cs=cairo_xlib_surface_create(conky_window.display, conky_window.drawable, conky_window.visual, w, h)

cr=cairo_create(cs)



cairo_move_to(cr,corner_r,0)

cairo_line_to(cr,w-corner_r,0)

cairo_curve_to(cr,w,0,w,0,w,corner_r)

cairo_line_to(cr,w,h-corner_r)

cairo_curve_to(cr,w,h,w,h,w-corner_r,h)

cairo_line_to(cr,corner_r,h)

cairo_curve_to(cr,0,h,0,h,0,h-corner_r)

cairo_line_to(cr,0,corner_r)

cairo_curve_to(cr,0,0,0,0,corner_r,0)

cairo_close_path(cr)



cairo_set_source_rgba(cr,rgb_to_r_g_b(bg_colour,bg_alpha))

cairo_fill(cr)

end




modifier bg_alpha en fonction de l'opacité que vous voulez (0.1 clair 1= opaque)





puis rajouter ceci avant TEXT dans votre conkyrc:

lua_load ~/.conky/draw_bg.lua (attention ceci est mon chemin à modifier en fonction de votre chemin)

lua_draw_hook_pre draw_bg



Ca donne ceci :





Edité par loutch Le 27/05/2013 à 15h10


Linuxmint 19.1 Tessa - Mageia 7rc Mate sur ssd sur HP Pavilion g7
Xubuntu 18.04 LTS et 19.04 en xfce sur ASUS Rog STRIX


Adrien.D Membre non connecté

Rang

Avatar

Webmaster Admin système

Inscrit le : 30/05/2011 à 18h36

Localisation : Dijon-21-FRA

Messages: 10322

Le 10/06/2013 à 23h26
Hello,



Petit ajout, le nom du système d'exploitation, qui récupère le nom et la version de la distrib via la commande



Code BASH :
 lsb_release -d | cut -f2




Ainsi, ça s'adapte à n'importe quelle distrib :)







Caché :
background yes

use_xft yes

xftfont Sans:size=10

xftalpha 1

update_interval 1.0

total_run_times 0

own_window yes

own_window_transparent yes

own_window_argb_visual yes

own_window_type normal

own_window_hints undecorated,below,skip_taskbar,skip_pager,sticky

double_buffer yes

minimum_size 400 400

maximum_width 300

text_buffer_size 1200

draw_shades no

draw_outline no

draw_borders no

draw_graph_borders no

default_color white

default_outline_color white

alignment top_right

gap_x 10

gap_y 10

no_buffers yes

uppercase no

cpu_avg_samples 2

override_utf8_locale yes

#

color1 white

#

color2 orange

#

color3 white

#

color4 lightblue

#cornflowerblue

# Lua Load #

#lua_load ~/.conky/ring.lua

#lua_draw_hook_pre clock_rings



TEXT

${font Sans:size=8}${color3}Système d'exploitation : ${goto 150}${color2}${exec lsb_release -d | cut -f2 }



${color3}Kernel: ${color2}${exec expr `uname -r | cut -d- -f1`} ${goto 150}${color3}Archi:${color2} $machine

${color3}Uptime:${color2} $uptime ${goto 150}${color3}Charge:${color2} $loadavg

${color3}Processus: ${color2} $processes${color3}${goto 150}En cours: ${color2} $running_processes





${color3}CPU: ${hr}${color2}



${color3}Frequence :${color2} ${freq_g} GHz



${color3}Core 1:${color2} ${cpu cpu0}%${goto 85}${color4}${cpubar cpu0 6,60}${color2}${goto 170}${exec expr `sensors | grep 'Core 0' | cut -d+ -f2 | cut -d( -f1 | cut -d. -f1`}°C${goto 200}${color4}${execbar expr `sensors | grep 'Core 0' | cut -d+ -f2 | cut -d( -f1 | cut -d. -f1`}${color2}

${color3}Core 2:${color2} ${cpu cpu1}%${goto 85}${color4}${cpubar cpu1 6,60}${color2}${goto 170}${exec expr `sensors | grep 'Core 1' | cut -d+ -f2 | cut -d( -f1 | cut -d. -f1`}°C${goto 200}${color4}${execbar expr `sensors | grep 'Core 1' | cut -d+ -f2 | cut -d( -f1 | cut -d. -f1`}${color2}

${color3}Core 3:${color2} ${cpu cpu2}%${goto 85}${color4}${cpubar cpu2 6,60}${color2}${goto 170}${exec expr `sensors | grep 'Core 2' | cut -d+ -f2 | cut -d( -f1 | cut -d. -f1`}°C${goto 200}${color4}${execbar expr `sensors | grep 'Core 2' | cut -d+ -f2 | cut -d( -f1 | cut -d. -f1`}${color2}

${color3}Core 4:${color2} ${cpu cpu3}%${goto 85}${color4}${cpubar cpu3 6,60}${color2}${goto 170}${exec expr `sensors | grep 'Core 3' | cut -d+ -f2 | cut -d( -f1 | cut -d. -f1`}°C${goto 200}${color4}${execbar expr `sensors | grep 'Core 3' | cut -d+ -f2 | cut -d( -f1 | cut -d. -f1`}${color2}

${color3}Core 5:${color2} ${cpu cpu4}%${goto 85}${color4}${cpubar cpu4 6,60}${color2}${goto 170}${exec expr `sensors | grep 'Core 0' | cut -d+ -f2 | cut -d( -f1 | cut -d. -f1`}°C${goto 200}${color4}${execbar expr `sensors | grep 'Core 0' | cut -d+ -f2 | cut -d( -f1 | cut -d. -f1`}${color2}

${color3}Core 6:${color2} ${cpu cpu5}%${goto 85}${color4}${cpubar cpu5 6,60}${color2}${goto 170}${exec expr `sensors | grep 'Core 1' | cut -d+ -f2 | cut -d( -f1 | cut -d. -f1`}°C${goto 200}${color4}${execbar expr `sensors | grep 'Core 1' | cut -d+ -f2 | cut -d( -f1 | cut -d. -f1`}${color2}

${color3}Core 7:${color2} ${cpu cpu6}%${goto 85}${color4}${cpubar cpu6 6,60}${color2}${goto 170}${exec expr `sensors | grep 'Core 2' | cut -d+ -f2 | cut -d( -f1 | cut -d. -f1`}°C${goto 200}${color4}${execbar expr `sensors | grep 'Core 2' | cut -d+ -f2 | cut -d( -f1 | cut -d. -f1`}${color2}

${color3}Core 8:${color2} ${cpu cpu7}%${goto 85}${color4}${cpubar cpu7 6,60}${color2}${goto 170}${exec expr `sensors | grep 'Core 3' | cut -d+ -f2 | cut -d( -f1 | cut -d. -f1`}°C${goto 200}${color4}${execbar expr `sensors | grep 'Core 3' | cut -d+ -f2 | cut -d( -f1 | cut -d. -f1`}${color2}





${color3}MEMOIRE: ${hr}${color2}



${color3}RAM:${goto 40}${color2} $mem / $memmax ${goto 170}$memperc% ${goto 200}${color4}${membar}${color2}

${color3}SWAP:${goto 40}${color2} ${swap} / ${swapmax} ${goto 170} ${swapperc}%${goto 200}${color4}${swapbar}





${color3}ESPACE DISQUE:${hr}${color2}



${color3}Racine ${color2}${goto 50}${fs_used /} / ${fs_size /} ${goto 170}${fs_used_perc /}% ${goto 200}${color4}${fs_bar /}${color2}

${color3}Home ${color2}${goto 50}${fs_used /home} / ${fs_size /home} ${goto 170}${fs_used_perc /home}% ${goto 200}${color4}${fs_bar /home}${color2}

${color3}DATA ${color2}${goto 50}${fs_used /media/DATA} / ${fs_size /media/DATA} ${goto 170}${fs_used_perc /media/DATA}% ${goto 200}${color4}${fs_bar /media/DATA}${color2}





${color3}RESEAU: ${hr}${color2}



${color3}Ethernet : ${color2}${addr eth0}

${color3}Download :${color2} ${downspeedf eth0}k/s ${goto 175}${color3}Upload :${color2} ${upspeedf eth0}k/s



${color3}Wi-Fi : ${color2}${addr wlan0}

${color3}Download :${color2} ${downspeedf wlan0}k/s ${goto 175}${color3}Upload :${color2} ${upspeedf wlan0}k/s



${color3}IP Publique : ${color2}${texeci 3600 wget http://checkip.dyndns.org -O - -o /dev/null | cut -d : -f 2 | cut -d < -f 1}



Config : PC Fixe : X470 GAMING PRO- AMD Ryzen 5 2600X - 16Go RAM - Radeon RX 560 (Pilote libre) - user_bar_calculate - GNOME Desktop - Kernel 4.19 LTS
Vice président de l'association COAGUL ("Côte-d’Or - Association Générale des Utilisateurs de Logiciels libres")
Webmaster de MageiaLinuxOnline uniquement. Pas de support de ma part.
Site web
lichkuan Membre non connecté

Rang

Avatar

Inscrit le : 05/09/2013 à 17h51

Messages: 15

Le 12/09/2013 à 20h54
Hello,

Superbes Conkies !!!!

Est-ce que vous quriez conky-mqnqger en RPM ou en source ?

Merci

loutch Membre non connecté

Rang

Avatar

Inscrit le : 07/07/2010 à 13h05

Localisation : Sarreguemines

Messages: 1385

Le 21/09/2013 à 16h47




Mon dernier sur Mageia 2 KDE 64 avec une horloge (2 lua , un pour les cadrans et un autre pour faire défiler les heures.)









le conkyrc:

Caché :


background no

use_xft yes

xftfont DejaVu Sans :size=8

xftalpha 1

update_interval 1.0

total_run_times 0

own_window yes

own_window_transparent yes

own_window_argb_visual yes

own_window_type normal

own_window_hints undecorated,below,skip_taskbar,skip_pager

double_buffer yes

minimum_size 300 2

maximum_width 300

text_buffer_size 1024

draw_shades no

draw_outline no

draw_borders no

border_width 1

draw_graph_borders no

default_color c8c8c8

default_outline_color cacaca

alignment top_right

gap_x 0

gap_y 0

no_buffers yes

uppercase no

cpu_avg_samples 2

override_utf8_locale yes

#

color1 white

#

color2 e8e8e8

#

color3 6495ee

#

color4 cacaca

#

color5 e7e7e7

#

color6 red

#cornflowerblue

# Lua Load #

#lua_load ~/.conky/ring.lua

#lua_draw_hook_pre clock_rings

lua_load ~/.conky/horloge.lua

lua_draw_hook_post main_rings

lua_load ~/.conky/grey.lua

lua_draw_hook_pre main

#lua_load ~/.conky/draw_bg.lua

#lua_draw_hook_pre draw_bg



TEXT



${font Sans:size=8}${color3}Kernel:${color2}$kernel

${color3}Uptime:${color2}$uptime

${color3}Processus:${color2}$processes${color3}${alignr}En cours: ${color2} $running_processes

${color3}KDE: ${color2}4.8.5

${color3}${hr}

${color3}Core 1:${color2} ${cpu cpu0}%${color2}${goto 90}${freq_g 1} GHz ${color6}${cpugraph 12,140 cpu1}

${color3}Temp :${color2} ${exec expr `cat /sys/class/hwmon/hwmon1/device/temp1_input` / 1000}°C ${goto 120}${if_match ${exec expr `cat /sys/class/hwmon/hwmon1/device/temp2_input`} > 55000}${if_match ${exec expr `cat /sys/class/hwmon/hwmon1/device/temp2_input`} < 61000}${color orange}${else}${color red}${endif}${else}${color 6495ee}${endif}${execbar expr `cat /sys/class/hwmon/hwmon1/device/temp2_input` / 1000}${goto 120}${color4}${execbar echo 0}

${color3}Core 2:${color2} ${cpu cpu1}%${color2}${goto 90}${freq_g 2} GHz ${color6}${cpugraph 12,140 cpu2}

${color3}Temp :${color2} ${exec expr `cat /sys/class/hwmon/hwmon1/device/temp2_input` / 1000}°C ${goto 120}${if_match ${exec expr `cat /sys/class/hwmon/hwmon1/device/temp2_input`} > 55000}${if_match ${exec expr `cat /sys/class/hwmon/hwmon1/device/temp2_input`} < 61000}${color orange}${else}${color red}${endif}${else}${color 6495ee}${endif}${execbar expr `cat /sys/class/hwmon/hwmon1/device/temp1_input` / 1000}${goto 120}${color4}${execbar echo 0}

${color3}Core 3:${color2} ${cpu cpu2}%${color2}${goto 90}${freq_g 3} GHz ${color6}${cpugraph 12,140 cpu3}

${color3}Temp :${color2} ${exec expr `cat /sys/class/hwmon/hwmon1/device/temp1_input` / 1000}°C ${goto 120}${if_match ${exec expr `cat /sys/class/hwmon/hwmon1/device/temp2_input`} > 55000}${if_match ${exec expr `cat /sys/class/hwmon/hwmon1/device/temp2_input`} < 61000}${color orange}${else}${color red}${endif}${else}${color 6495ee}${endif}${execbar expr `cat /sys/class/hwmon/hwmon1/device/temp2_input` / 1000}${goto 120}${color4}${execbar echo 0}

${color3}Core 4:${color2} ${cpu cpu3}%${color2}${goto 90}${freq_g 4} GHz ${color6}${cpugraph 12,140 cpu4}

${color3}Temp :${color2} ${exec expr `cat /sys/class/hwmon/hwmon1/device/temp2_input` / 1000}°C ${goto 120}${if_match ${exec expr `cat /sys/class/hwmon/hwmon1/device/temp2_input`} > 55000}${if_match ${exec expr `cat /sys/class/hwmon/hwmon1/device/temp2_input`} < 61000}${color orange}${else}${color red}${endif}${else}${color 6495ee}${endif}${execbar expr `cat /sys/class/hwmon/hwmon1/device/temp2_input` / 1000}${goto 120}${color4}${execbar echo 0}

${color3}${hr}

${color3}Ram : ${color2} $mem/$memmax ${goto 150}$memperc% ${goto 200}${color3}${membar 6,100}${goto 200}${color4}${wireless_link_bar 6,100 echo 0}

${color3}Swap: ${color2} ${swap} / ${swapmax} ${goto 150} ${swapperc}%${goto 200}${color3}${swapbar 6,100}${goto 200}${color4}${wireless_link_bar 6,100 echo 0}

${color3}${hr}

${color3}Quality:${goto 100}${color2}${wireless_link_qual_perc wlan0}%${goto 200}${color3}${wireless_link_bar 6,100 wlan0}${goto 200}${color5}${wireless_link_bar 6,100 wlan0 echo 0}

${color3}Down :${goto 100}${color2}${totaldown wlan0}${goto 195}${color5}${downspeedf wlan0}k/s

${color3}Up :${goto 100}${color2}${totalup wlan0}${goto 195}${color5}${upspeedf wlan0}k/s

${color3}URL${goto 130}NB PORTS OUVERTS:${color1}${tcp_portmon 1 65535 count}${goto 300}

${color2}${tcp_portmon 1 65535 rip 0}${goto 210}${tcp_portmon 1 65535 rport 0}

${color2}${tcp_portmon 1 65535 rip 1}${goto 210}${tcp_portmon 1 65535 rport 1}

${color2}${tcp_portmon 1 65535 rip 2}${goto 210}${tcp_portmon 1 65535 rport 2}

${color2}${tcp_portmon 1 65535 rip 3}${goto 210}${tcp_portmon 1 65535 rport 3}

${color2}${tcp_portmon 1 65535 rip 4}${goto 210}${tcp_portmon 1 65535 rport 4}

${color2}${tcp_portmon 1 65535 rip 5}${goto 210}${tcp_portmon 1 65535 rport 5}

${color3}${hr}

${color3}Processus CPU ${color3}PID CPU MEM

${color6}${top name 1} ${goto 120}${top pid 1}${goto 185}${top cpu 1}${goto 250}${top mem 1}

${color2}${top name 2} ${goto 120}${top pid 2}${goto 185}${top cpu 2}${goto 250}${top mem 2}

${color2}${top name 3} ${goto 120}${top pid 3}${goto 185}${top cpu 3}${goto 250}${top mem 3}

${color2}${top name 4} ${goto 120}${top pid 4}${goto 185}${top cpu 4}${goto 250}${top mem 4}

${color3}Processus MEM ${color3}PID CPU MEM

${color6}${top_mem name 1} ${goto 120}${top_mem pid 1}${goto 185}${top_mem cpu 1}${goto 250}${top_mem mem 1}

${color2}${top_mem name 2} ${goto 120}${top_mem pid 2}${goto 185}${top_mem cpu 2}${goto 250}${top_mem mem 2}

${color2}${top_mem name 3} ${goto 120}${top_mem pid 3}${goto 185}${top_mem cpu 3}${goto 250}${top_mem mem 3}

${color2}${top_mem name 4} ${goto 120}${top_mem pid 4}${goto 185}${top_mem cpu 4}${goto 250}${top_mem mem 4}

${color3}${hr}

${color3}Température Carte : ${color2}${hwmon 0 temp 1} °C

${color3}Température Disque : ${color2}${execi 10 hddtemp -n /dev/sda} °C

${color3}${hr}

${color3}Racine :${color5}${fs_used /} / ${fs_size /} ${goto 200}${fs_used_perc /}%

${color3}Home :${color5}${fs_used /home} / ${fs_size /home} ${goto 200}${fs_used_perc /home}%

${color3}Racine

${offset 30}${goto 02}Lecture: ${color2}${diskio_read sda6}${goto 118}${color3}Ecriture : ${color2}${diskio_write sda6}

${offset 30}${goto 5}${color1}${diskiograph_read sda6 10,90 0000ff ff0000}${goto 120}${diskiograph_write sda6 10,90 0000ff ff0000}

${color3}Home

${offset 30}${goto 02}Lecture: ${color2}${diskio_read sda8}${goto 118}${color3}Ecriture: ${color2}${diskio_write sda8}${goto 285}

${offset 30}${goto 5}${color1}${diskiograph_read sda8 10,90 0000ff ff0000}${goto 120}${diskiograph_write sda8 10,90 0000ff ff0000}

${color3}${hr}

${offset 15}${color3}Semaine : ${goto 150} ${color2}${time %V}

${offset 15}${color3}Jour : ${goto 150} ${color2}${time %A}

${font courier:style=bold:size=9}${color1}${execpi 300 TODAY=`date +%_d` ; cal -s | sed s/sa$/sa$'${color3}'/ | sed s/"$TODAY"'b'/'${color6}'"$TODAY"'${color1}'/}

#${goto 165}${color FF0000}${font caviar dreams:size=12}${time %H}:${color1}${time %M}:${color cornflowerblue}${time %S}



















le lua cadran :



Caché :


--[[

Ring Meters by londonali1010 (2009)



This script draws percentage meters as rings. It is fully customisable; all options are described in the script.



IMPORTANT: if you are using the 'cpu' function, it will cause a segmentation fault if it tries to draw a ring straight away. The if statement on line 145 uses a delay to make sure that this doesn't happen. It calculates the length of the delay by the number of updates since Conky started. Generally, a value of 5s is long enough, so if you update Conky every 1s, use update_num>5 in that if statement (the default). If you only update Conky every 2s, you should change it to update_num>3; conversely if you update Conky every 0.5s, you should use update_num>10. ALSO, if you change your Conky, is it best to use "killall conky; conky" to update it, otherwise the update_num will not be reset and you will get an error.



To call this script in Conky, use the following (assuming that you save this script to ~/scripts/rings.lua):

lua_load ~/scripts/rings-v1.2.lua

lua_draw_hook_pre ring_stats



Changelog:

+ v1.2 -- Added option for the ending angle of the rings (07.10.2009)

+ v1.1 -- Added options for the starting angle of the rings, and added the "max" variable, to allow for variables that output a numerical value rather than a percentage (29.09.2009)

+ v1.0 -- Original release (28.09.2009)

]]



require 'cairo'



function conky_main_rings()



if (os.date("%l"))=='12' then

heure=(os.date("%M")/60)

else

heure=(os.date("%l"))+(os.date("%M")/60)

end



-- START PARAMETERS HERE

local rings_settings={





{

name="",

arg=heure,

max=11.99,

xc=230,

yc=780,

radius=57,

thickness=5,

gap_sectors=5,

sectors=12,

bg_colour1={{0,0x999999,0},{0.5,0x999999,0.3}, {1,0x999999,0}},

fg_colour1={{0,0xFF0000,0},{0.5,0xFF0000,1}, {1,0xFF0000,0}},

fg_colour2={{0,0XFF0000,0},{0.5,0xFF0000,1}, {1,0xFF0000,0}},

bd_colour1={{0,0XFF0000,1},{0.5,0xFF0000,1}, {1,0xFF0000,1}},

},

{

name="",

arg=(os.date("%M"))+(os.date("%S")/60),

max=59.99,

xc=230,

yc=780,

radius=50,

thickness=5,

start_angle=0,

end_angle=360,

gap_sectors=1,

sectors=60,

fill_sector=false,

bg_colour1={{0,0x999999,0},{0.5,0x999999,0.3}, {1,0x999999,0}},

fg_colour1={{0,0XFFFFFF,0},{0.5,0XFFFFFF,1}, {1,0XFFFFFF,0}},

fg_colour2={{0,0xFFFFFF,0},{0.5,0xFFFFFF,1}, {1,0xFFFFFF,0}},

bd_colour1={{0,0XFFFFFF,1},{0.5,0xFFFFFF,1}, {1,0xFFFFFF,1}},

},

{

name="time",

arg="%S",

max=60,

xc=230,

yc=780,

radius=43,

thickness=5,

start_angle=0,

end_angle=360,

sectors=60,

fill_sector=false,

bg_colour1={{0,0x999999,0},{0.5,0x999999,0.3}, {1,0x999999,0}},

fg_colour1={{1,0X6495EE,1},{1,0x6495EE,1}, {1,0x6495EE,1}},

fg_colour2={{1,0X6495EE,1},{1,0x6495EE,1}, {1,0x6495EE,1}},

bd_colour1={{0,0X6495EE,1},{0.5,0x6495EE,1}, {1,0x6495EE,1}},

},



}



--END OF PARAMETERS HERE



--main function



--if conky_window==nil then return end



local cs=cairo_xlib_surface_create(conky_window.display,

conky_window.drawable,

conky_window.visual, conky_window.width, conky_window.height)

local cr=cairo_create(cs)



if tonumber(conky_parse('${updates}'))>3 then

for i in pairs(rings_settings) do

draw_ring(cr,rings_settings[i])

end

end



cairo_destroy(cr)

end







function draw_ring(cr, t)



local function rgba_to_r_g_b_a(tcolour)

local colour,alpha=tcolour[2],tcolour[3]

return ((colour / 0x10000) % 0x100) / 255.,

((colour / 0x100) % 0x100) / 255., (colour % 0x100) / 255., alpha

end





local function calc_delta(tcol1,tcol2)

--calculate deltas P R G B A to table_colour 1



for x = 1, #tcol1 do

tcol1[x].dA = 0

tcol1[x].dP = 0

tcol1[x].dR = 0

tcol1[x].dG = 0

tcol1[x].dB = 0

if tcol2~=nil and #tcol1 == #tcol2 then

local r1,g1,b1,a1 = rgba_to_r_g_b_a(tcol1[x])

local r2,g2,b2,a2 = rgba_to_r_g_b_a(tcol2[x])

tcol1[x].dP = (tcol2[x][1]-tcol1[x][1])/t.sectors

tcol1[x].dR = (r2-r1)/t.sectors

tcol1[x].dG = (g2-g1)/t.sectors

tcol1[x].dB = (b2-b1)/t.sectors

tcol1[x].dA = (a2-a1)/t.sectors



end

end



return tcol1

end



--check values

local function setup(t)

if t.name==nil and t.arg==nil then

print ("No input values ... use parameters 'name'" +

" with 'arg' or only parameter 'arg' ")

return

end



if t.max==nil then

print ("No maximum value defined, use 'max'")

print ("for name=" .. t.name)

print ("with arg=" .. t.arg)

return

end

if t.name==nil then t.name="" end

if t.arg==nil then t.arg="" end



if t.xc==nil then t.xc=conky_window.width/2 end

if t.yc==nil then t.yc=conky_window.height/2 end

if t.thickness ==nil then t.thickness = 10 end

if t.radius ==nil then t.radius =conky_window.width/4 end

if t.start_angle==nil then t.start_angle =0 end

if t.end_angle==nil then t.end_angle=360 end

if t.bg_colour1==nil then

t.bg_colour1={{0,0x00ffff,0.1},{0.5,0x00FFFF,0.5},{1,0x00FFFF,0.1}}

end

if t.fg_colour1==nil then

t.fg_colour1={{0,0x00FF00,0.1},{0.5,0x00FF00,1},{1,0x00FF00,0.1}}

end

if t.bd_colour1==nil then

t.bd_colour1={{0,0xFFFF00,0.5},{0.5,0xFFFF00,1},{1,0xFFFF00,0.5}}

end

if t.sectors==nil then t.sectors=10 end

if t.gap_sectors==nil then t.gap_sectors=1 end

if t.fill_sector==nil then t.fill_sector=false end

if t.sectors==1 then t.fill_sector=false end

if t.border_size==nil then t.border_size=0 end

if t.cap==nil then t.cap="p" end

--some checks

if t.thickness>t.radius then t.thickness=t.radius*0.1 end

t.int_radius = t.radius-t.thickness



--check colors tables

for i=1, #t.bg_colour1 do

if #t.bg_colour1[i]~=3 then t.bg_colour1[i]={1,0xFFFFFF,0.5} end

end

for i=1, #t.fg_colour1 do

if #t.fg_colour1[i]~=3 then t.fg_colour1[i]={1,0xFF0000,1} end

end

for i=1, #t.bd_colour1 do

if #t.bd_colour1[i]~=3 then t.bd_colour1[i]={1,0xFFFF00,1} end

end



if t.bg_colour2~=nil then

for i=1, #t.bg_colour2 do

if #t.bg_colour2[i]~=3 then t.bg_colour2[i]={1,0xFFFFFF,0.5} end

end

end

if t.fg_colour2~=nil then

for i=1, #t.fg_colour2 do

if #t.fg_colour2[i]~=3 then t.fg_colour2[i]={1,0xFF0000,1} end

end

end

if t.bd_colour2~=nil then

for i=1, #t.bd_colour2 do

if #t.bd_colour2[i]~=3 then t.bd_colour2[i]={1,0xFFFF00,1} end

end

end



if t.start_angle>=t.end_angle then

local tmp_angle=t.end_angle

t.end_angle= t.start_angle

t.start_angle = tmp_angle

-- print ("inversed angles")

if t.end_angle-t.start_angle>360 and t.start_angle>0 then

t.end_angle=360+t.start_angle

print ("reduce angles")

end



if t.end_angle+t.start_angle>360 and t.start_angle<=0 then

t.end_angle=360+t.start_angle

print ("reduce angles")

end



if t.int_radius<0 then t.int_radius =0 end

if t.int_radius>t.radius then

local tmp_radius=t.radius

t.radius=t.int_radius

t.int_radius=tmp_radius

print ("inversed radius")

end

if t.int_radius==t.radius then

t.int_radius=0

print ("int radius set to 0")

end

end



t.fg_colour1 = calc_delta(t.fg_colour1,t.fg_colour2)

t.bg_colour1 = calc_delta(t.bg_colour1,t.bg_colour2)

t.bd_colour1 = calc_delta(t.bd_colour1,t.bd_colour2)

end



if t.draw_me == true then t.draw_me = nil end

if t.draw_me ~= nil and conky_parse(tostring(t.draw_me)) ~= "1" then return end

--initialize table

setup(t)



--initialize cairo context

cairo_save(cr)

cairo_translate(cr,t.xc,t.yc)

cairo_set_line_join (cr, CAIRO_LINE_JOIN_ROUND)

cairo_set_line_cap (cr, CAIRO_LINE_CAP_ROUND)



--get value

local value = 0

if t.name ~="" then

value = tonumber(conky_parse(string.format('${%s %s}', t.name, t.arg)))

else

value = tonumber(t.arg)

end

if value==nil then value =0 end



--initialize sectors

--angle of a sector :

local angleA = ((t.end_angle-t.start_angle)/t.sectors)*math.pi/180

--value of a sector :

local valueA = t.max/t.sectors

--first angle of a sector :

local lastAngle = t.start_angle*math.pi/180





local function draw_sector(type_arc,angle0,angle,valpc, idx)



--this function draws a portion of arc

--type of arc, angle0 = strating angle, angle= angle of sector,

--valpc = percentage inside the sector, idx = sctor number #

local tcolor

if type_arc=="bg" then --background

if valpc==1 then return end

tcolor=t.bg_colour1

elseif type_arc=="fg" then --foreground

if valpc==0 then return end

tcolor=t.fg_colour1

elseif type_arc=="bd" then --border

tcolor=t.bd_colour1

end



--angles equivalents to gap_sector

local ext_delta=math.atan(t.gap_sectors/(2*t.radius))

local int_delta=math.atan(t.gap_sectors/(2*t.int_radius))



--angles of arcs

local ext_angle=(angle-ext_delta*2)*valpc

local int_angle=(angle-int_delta*2)*valpc



--define colours to use for this sector

if #tcolor==1 then

--plain color

local vR,vG,vB,vA = rgba_to_r_g_b_a(tcolor[1])

cairo_set_source_rgba(cr,vR+tcolor[1].dR*idx,

vG+tcolor[1].dG*idx,

vB+tcolor[1].dB*idx,

vA+tcolor[1].dA*idx )

else

--radient color

local pat=cairo_pattern_create_radial(0,0,t.int_radius,0,0,t.radius)

for i=1, #tcolor do

local vP,vR,vG,vB,vA = tcolor[i][1], rgba_to_r_g_b_a(tcolor[i])

cairo_pattern_add_color_stop_rgba (pat,

vP+tcolor[i].dP*idx,

vR+tcolor[i].dR*idx,

vG+tcolor[i].dG*idx,

vB+tcolor[i].dB*idx,

vA+tcolor[i].dA*idx )

end

cairo_set_source (cr, pat)

cairo_pattern_destroy(pat)

end



--start drawing

cairo_save(cr)

--x axis is parrallel to start of sector

cairo_rotate(cr,angle0-math.pi/2)



local ri,re = t.int_radius ,t.radius



--point A

local angle_a



if t.cap == "p" then

angle_a = int_delta

if t.inverse_arc and type_arc ~="bg" then

angle_a = angle-int_angle-int_delta

end

if not(t.inverse_arc) and type_arc =="bg" then

angle_a = int_delta+int_angle

end

else --t.cap=="r"

angle_a = ext_delta

if t.inverse_arc and type_arc~="bg" then

angle_a = angle-ext_angle-ext_delta

end

if not(t.inverse_arc) and type_arc=="bg" then

angle_a = ext_delta+ext_angle

end

end

local ax,ay = ri*math.cos(angle_a),ri*math.sin(angle_a)





--point B

local angle_b = ext_delta

if t.cap == "p" then

if t.inverse_arc and type_arc ~="bg" then

angle_b = angle-ext_angle-ext_delta

end

if not(t.inverse_arc) and type_arc=="bg" then

angle_b = ext_delta+ext_angle

end

else

if t.inverse_arc and type_arc ~="bg" then

angle_b = angle-ext_angle-ext_delta

end

if not(t.inverse_arc) and type_arc=="bg" then

angle_b = ext_delta+ext_angle

end

end

local bx,by = re*math.cos(angle_b),re*math.sin(angle_b)



-- EXTERNAL ARC B --> C

local b0,b1

if t.inverse_arc then

if type_arc=="bg" then

b0,b1= ext_delta, angle-ext_delta-ext_angle

else

b0,b1= angle-ext_angle-ext_delta, angle-ext_delta

end

else

if type_arc=="bg" then

b0,b1= ext_delta+ext_angle, angle-ext_delta

else

b0,b1= ext_delta, ext_angle+ext_delta

end

end



---POINT D

local angle_c, angle_d

if t.cap == "p" then

angle_d = angle-int_delta

if t.inverse_arc and type_arc=="bg" then

angle_d = angle-int_delta-int_angle

end

if not(t.inverse_arc) and type_arc~="bg" then

angle_d=int_delta+int_angle

end

else

angle_d = angle-ext_delta

if t.inverse_arc and type_arc=="bg" then

angle_d =angle-ext_delta-ext_angle

end

if not(t.inverse_arc) and type_arc~="bg" then

angle_d = ext_angle+ext_delta

end

end

local dx,dy = ri*math.cos(angle_d),ri*math.sin(angle_d)



-- INTERNAL ARC D --> A

local d0,d1

if t.cap=="p" then

if t.inverse_arc then

if type_arc=="bg" then

d0,d1= angle-int_delta-int_angle,int_delta

else

d0,d1= angle-int_delta, angle- int_angle-int_delta

end

else

if type_arc=="bg" then

d0,d1= angle-int_delta, int_delta+int_angle

else

d0,d1= int_delta+int_angle, int_delta

end

end

else

if t.inverse_arc then

if type_arc=="bg" then

d0,d1= angle-ext_delta-ext_angle,ext_delta

else

d0,d1= angle-ext_delta, angle- ext_angle-ext_delta

end

else

if type_arc=="bg" then

d0,d1= angle-ext_delta,ext_delta+ext_angle

else

d0,d1= ext_angle+ext_delta, ext_delta

end

end

end



--draw sector

cairo_move_to(cr,ax,ay)

cairo_line_to(cr,bx,by)

cairo_arc(cr,0,0,re,b0,b1)

cairo_line_to(cr,dx,dy)

cairo_arc_negative(cr,0,0,ri,d0,d1)

cairo_close_path (cr);



--stroke or fill sector

if type_arc=="bd" then

cairo_set_line_width(cr,t.border_size)

cairo_stroke(cr)

else

cairo_fill(cr)

end



cairo_restore(cr)



end

--draw sectors

local n0,n1,n2 = 1,t.sectors,1

if t.inverse_arc then n0,n1,n2 = t.sectors,1,-1 end

local index = 0

for i = n0,n1,n2 do

index = index +1

local valueZ=1

local cstA, cstB = (i-1),i

if t.inverse_arc then cstA,cstB = (t.sectors-i), (t.sectors-i+1) end



if value>valueA *cstA and value<valueA*cstB then

if not t.fill_sector then

valueZ = (value-valueA*cstA)/valueA

end

else

if value<valueA*cstB then valueZ=0 end

end



local start_angle= lastAngle+(i-1)*angleA

if t.foreground ~= false then

draw_sector("fg",start_angle,angleA,valueZ, index)

end

if t.background ~= false then

draw_sector("bg",start_angle,angleA,valueZ, i)

end

if t.border_size>0 then draw_sector("bd",start_angle,angleA,1, i) end

end



cairo_restore(cr)

end



--[[END OF RING-SECTORS WIDGET]]




le lua heure mn sec :



Caché :
--==============================================================================

-- conky_grey.lua

--

-- author : SLK

-- version : v2011062101

-- license : Distributed under the terms of GNU GPL version 2 or later

--

--==============================================================================



require 'cairo'



--------------------------------------------------------------------------------

-- clock DATA

-- HOURS

clock_h = {

{

name='time', arg='%H', max_value=12,

x=230, y=780,

graph_radius=33,

graph_thickness=3,

graph_unit_angle=30, graph_unit_thickness=30,

graph_bg_colour=0xffffff, graph_bg_alpha=0.0,

graph_fg_colour=0xff8000, graph_fg_alpha=0.0,

txt_radius=68,

txt_weight=1, txt_size=12.0,

txt_fg_colour=0xff0000, txt_fg_alpha=1,

graduation_radius=33,

graduation_thickness=6, graduation_mark_thickness=2,

graduation_unit_angle=30,

graduation_fg_colour=0xFFFFFF, graduation_fg_alpha=1,

},

}

-- MINUTES

clock_m = {

{

name='time', arg='%M', max_value=60,

x=230, y=780,

graph_radius=37,

graph_thickness=2,

graph_unit_angle=6, graph_unit_thickness=6,

graph_bg_colour=0xffffff, graph_bg_alpha=0,

graph_fg_colour=0x00ff00, graph_fg_alpha=0.0,

txt_radius=30,

txt_weight=1, txt_size=12.0,

txt_fg_colour=0xffffff, txt_fg_alpha=1,

graduation_radius=37,

graduation_thickness=0, graduation_mark_thickness=2,

graduation_unit_angle=30,

graduation_fg_colour=0xFFFFFF, graduation_fg_alpha=0,

},

}

-- SECONDS

clock_s = {

{

name='time', arg='%S', max_value=60,

x=230, y=780,

graph_radius=30,

graph_thickness=2,

graph_unit_angle=6, graph_unit_thickness=2,

graph_bg_colour=0xffffff, graph_bg_alpha=0.0,

graph_fg_colour=0x6495ee, graph_fg_alpha=0.0,

txt_radius=30,

txt_weight=1, txt_size=12.0,

txt_fg_colour=0x6495ee, txt_fg_alpha=1,

graduation_radius=0,

graduation_thickness=0, graduation_mark_thickness=0,

graduation_unit_angle=0,

graduation_fg_colour=0xFFFFFF, graduation_fg_alpha=0.0,

},

}



--------------------------------------------------------------------------------

-- gauge DATA



-------------------------------------------------------------------------------

-- rgb_to_r_g_b

-- converts color in hexa to decimal

--

function rgb_to_r_g_b(colour, alpha)

return ((colour / 0x10000) % 0x100) / 255., ((colour / 0x100) % 0x100) / 255., (colour % 0x100) / 255., alpha

end



-------------------------------------------------------------------------------

-- angle_to_position

-- convert degree to rad and rotate (0 degree is top/north)

--

function angle_to_position(start_angle, current_angle)

local pos = current_angle + start_angle

return ( ( pos * (2 * math.pi / 360) ) - (math.pi / 2) )

end



-------------------------------------------------------------------------------

-- draw_clock_ring

-- displays clock

--

function draw_clock_ring(display, data, value)

local max_value = data['max_value']

local x, y = data['x'], data['y']

local graph_radius = data['graph_radius']

local graph_thickness, graph_unit_thickness = data['graph_thickness'], data['graph_unit_thickness']

local graph_unit_angle = data['graph_unit_angle']

local graph_bg_colour, graph_bg_alpha = data['graph_bg_colour'], data['graph_bg_alpha']

local graph_fg_colour, graph_fg_alpha = data['graph_fg_colour'], data['graph_fg_alpha']



-- background ring

cairo_arc(display, x, y, graph_radius, 0, 2 * math.pi)

cairo_set_source_rgba(display, rgb_to_r_g_b(graph_bg_colour, graph_bg_alpha))

cairo_set_line_width(display, graph_thickness)

cairo_stroke(display)



-- arc of value

local val = (value % max_value)

local i = 1

while i <= val do

cairo_arc(display, x, y, graph_radius,( ((graph_unit_angle * i) - graph_unit_thickness)*(2*math.pi/360) )-(math.pi/2),((graph_unit_angle * i) * (2*math.pi/360))-(math.pi/2))

cairo_set_source_rgba(display,rgb_to_r_g_b(graph_fg_colour,graph_fg_alpha))

cairo_stroke(display)

i = i + 1

end

local angle = (graph_unit_angle * i) - graph_unit_thickness



-- graduations marks

local graduation_radius = data['graduation_radius']

local graduation_thickness, graduation_mark_thickness = data['graduation_thickness'], data['graduation_mark_thickness']

local graduation_unit_angle = data['graduation_unit_angle']

local graduation_fg_colour, graduation_fg_alpha = data['graduation_fg_colour'], data['graduation_fg_alpha']

if graduation_radius > 0 and graduation_thickness > 0 and graduation_unit_angle > 0 then

local nb_graduation = 360 / graduation_unit_angle

local i = 1

while i <= nb_graduation do

cairo_set_line_width(display, graduation_thickness)

cairo_arc(display, x, y, graduation_radius, (((graduation_unit_angle * i)-(graduation_mark_thickness/2))*(2*math.pi/360))-(math.pi/2),(((graduation_unit_angle * i)+(graduation_mark_thickness/2))*(2*math.pi/360))-(math.pi/2))

cairo_set_source_rgba(display,rgb_to_r_g_b(graduation_fg_colour,graduation_fg_alpha))

cairo_stroke(display)

cairo_set_line_width(display, graph_thickness)

i = i + 1

end

end



-- text

local txt_radius = data['txt_radius']

local txt_weight, txt_size = data['txt_weight'], data['txt_size']

local txt_fg_colour, txt_fg_alpha = data['txt_fg_colour'], data['txt_fg_alpha']

local movex = txt_radius * (math.cos((angle * 2 * math.pi / 360)-(math.pi/2)))

local movey = txt_radius * (math.sin((angle * 2 * math.pi / 360)-(math.pi/2)))

cairo_select_font_face (display, "ubuntu", CAIRO_FONT_SLANT_NORMAL, txt_weight);

cairo_set_font_size (display, txt_size);

cairo_set_source_rgba (display, rgb_to_r_g_b(txt_fg_colour, txt_fg_alpha));

cairo_move_to (display, x + movex - (txt_size / 2), y + movey + 3);

cairo_show_text (display, value);

cairo_stroke (display);

end



-------------------------------------------------------------------------------

-- draw_gauge_ring

-- displays gauges

--

function draw_gauge_ring(display, data, value)

local max_value = data['max_value']

local x, y = data['x'], data['y']

local graph_radius = data['graph_radius']

local graph_thickness, graph_unit_thickness = data['graph_thickness'], data['graph_unit_thickness']

local graph_start_angle = data['graph_start_angle']

local graph_unit_angle = data['graph_unit_angle']

local graph_bg_colour, graph_bg_alpha = data['graph_bg_colour'], data['graph_bg_alpha']

local graph_fg_colour, graph_fg_alpha = data['graph_fg_colour'], data['graph_fg_alpha']

local hand_fg_colour, hand_fg_alpha = data['hand_fg_colour'], data['hand_fg_alpha']

local graph_end_angle = (max_value * graph_unit_angle) % 360



-- background ring

cairo_arc(display, x, y, graph_radius, angle_to_position(graph_start_angle, 0), angle_to_position(graph_start_angle, graph_end_angle))

cairo_set_source_rgba(display, rgb_to_r_g_b(graph_bg_colour, graph_bg_alpha))

cairo_set_line_width(display, graph_thickness)

cairo_stroke(display)



-- arc of value

local val = value % (max_value + 1)

local start_arc = 0

local stop_arc = 0

local i = 1

while i <= val do

start_arc = (graph_unit_angle * i) - graph_unit_thickness

stop_arc = (graph_unit_angle * i)

cairo_arc(display, x, y, graph_radius, angle_to_position(graph_start_angle, start_arc), angle_to_position(graph_start_angle, stop_arc))

cairo_set_source_rgba(display, rgb_to_r_g_b(graph_fg_colour, graph_fg_alpha))

cairo_stroke(display)

i = i + 1

end

local angle = start_arc



-- hand

start_arc = (graph_unit_angle * val) - (graph_unit_thickness * 2)

stop_arc = (graph_unit_angle * val)

cairo_arc(display, x, y, graph_radius, angle_to_position(graph_start_angle, start_arc), angle_to_position(graph_start_angle, stop_arc))

cairo_set_source_rgba(display, rgb_to_r_g_b(hand_fg_colour, hand_fg_alpha))

cairo_stroke(display)



-- graduations marks

local graduation_radius = data['graduation_radius']

local graduation_thickness, graduation_mark_thickness = data['graduation_thickness'], data['graduation_mark_thickness']

local graduation_unit_angle = data['graduation_unit_angle']

local graduation_fg_colour, graduation_fg_alpha = data['graduation_fg_colour'], data['graduation_fg_alpha']

if graduation_radius > 0 and graduation_thickness > 0 and graduation_unit_angle > 0 then

local nb_graduation = graph_end_angle / graduation_unit_angle

local i = 0

while i < nb_graduation do

cairo_set_line_width(display, graduation_thickness)

start_arc = (graduation_unit_angle * i) - (graduation_mark_thickness / 2)

stop_arc = (graduation_unit_angle * i) + (graduation_mark_thickness / 2)

cairo_arc(display, x, y, graduation_radius, angle_to_position(graph_start_angle, start_arc), angle_to_position(graph_start_angle, stop_arc))

cairo_set_source_rgba(display,rgb_to_r_g_b(graduation_fg_colour,graduation_fg_alpha))

cairo_stroke(display)

cairo_set_line_width(display, graph_thickness)

i = i + 1

end

end



-- text

local txt_radius = data['txt_radius']

local txt_weight, txt_size = data['txt_weight'], data['txt_size']

local txt_fg_colour, txt_fg_alpha = data['txt_fg_colour'], data['txt_fg_alpha']

local movex = txt_radius * math.cos(angle_to_position(graph_start_angle, angle))

local movey = txt_radius * math.sin(angle_to_position(graph_start_angle, angle))

cairo_select_font_face (display, "ubuntu", CAIRO_FONT_SLANT_NORMAL, txt_weight)

cairo_set_font_size (display, txt_size)

cairo_set_source_rgba (display, rgb_to_r_g_b(txt_fg_colour, txt_fg_alpha))

cairo_move_to (display, x + movex - (txt_size / 2), y + movey + 3)

cairo_show_text (display, value)

cairo_stroke (display)



-- caption

local caption = data['caption']

local caption_weight, caption_size = data['caption_weight'], data['caption_size']

local caption_fg_colour, caption_fg_alpha = data['caption_fg_colour'], data['caption_fg_alpha']

local tox = graph_radius * (math.cos((graph_start_angle * 2 * math.pi / 360)-(math.pi/2)))

local toy = graph_radius * (math.sin((graph_start_angle * 2 * math.pi / 360)-(math.pi/2)))

cairo_select_font_face (display, "ubuntu", CAIRO_FONT_SLANT_NORMAL, caption_weight);

cairo_set_font_size (display, caption_size)

cairo_set_source_rgba (display, rgb_to_r_g_b(caption_fg_colour, caption_fg_alpha))

cairo_move_to (display, x + tox + 5, y + toy + 1)

-- bad hack but not enough time !

if graph_start_angle < 105 then

cairo_move_to (display, x + tox - 30, y + toy + 1)

end

cairo_show_text (display, caption)

cairo_stroke (display)

end



-------------------------------------------------------------------------------

-- go_clock_rings

-- loads data and displays clock

--

function go_clock_rings(display)

local function load_clock_rings(display, data)

local str, value = '', 0

str = string.format('${%s %s}',data['name'], data['arg'])

str = conky_parse(str)

value = tonumber(str)

draw_clock_ring(display, data, value)

end



for i in pairs(clock_h) do

load_clock_rings(display, clock_h[i])

end

for i in pairs(clock_m) do

load_clock_rings(display, clock_m[i])

end

for i in pairs(clock_s) do

load_clock_rings(display, clock_s[i])

end

end



-------------------------------------------------------------------------------

-- go_gauge_rings

-- loads data and displays gauges

--

function go_gauge_rings(display)

local function load_gauge_rings(display, data)

local str, value = '', 0

str = string.format('${%s %s}',data['name'], data['arg'])

str = conky_parse(str)

value = tonumber(str)

draw_gauge_ring(display, data, value)

end



for i in pairs(gauge) do

load_gauge_rings(display, gauge[i])

end

end



-------------------------------------------------------------------------------

-- MAIN

function conky_main()

if conky_window == nil then

return

end



local cs = cairo_xlib_surface_create(conky_window.display, conky_window.drawable, conky_window.visual, conky_window.width, conky_window.height)

local display = cairo_create(cs)



local updates = conky_parse('${updates}')

update_num = tonumber(updates)



if update_num > 5 then

go_clock_rings(display)

go_gauge_rings(display)

end



cairo_surface_destroy(cs)

cairo_destroy(display)

end







A modifier en fonction de votre configuration.








Linuxmint 19.1 Tessa - Mageia 7rc Mate sur ssd sur HP Pavilion g7
Xubuntu 18.04 LTS et 19.04 en xfce sur ASUS Rog STRIX


Adrien.D Membre non connecté

Rang

Avatar

Webmaster Admin système

Inscrit le : 30/05/2011 à 18h36

Localisation : Dijon-21-FRA

Messages: 10322

Le 21/09/2013 à 17h45
Hello,

question idiote : Hier ton calendrier n'affichait pas "septembre 2013" avec le 20 de 2013 en rouge ? :mrgreene:


Config : PC Fixe : X470 GAMING PRO- AMD Ryzen 5 2600X - 16Go RAM - Radeon RX 560 (Pilote libre) - user_bar_calculate - GNOME Desktop - Kernel 4.19 LTS
Vice président de l'association COAGUL ("Côte-d’Or - Association Générale des Utilisateurs de Logiciels libres")
Webmaster de MageiaLinuxOnline uniquement. Pas de support de ma part.
Site web
loutch Membre non connecté

Rang

Avatar

Inscrit le : 07/07/2010 à 13h05

Localisation : Sarreguemines

Messages: 1385

Le 21/09/2013 à 19h11
RE

non pourquoi ????

@+


Linuxmint 19.1 Tessa - Mageia 7rc Mate sur ssd sur HP Pavilion g7
Xubuntu 18.04 LTS et 19.04 en xfce sur ASUS Rog STRIX


Adrien.D Membre non connecté

Rang

Avatar

Webmaster Admin système

Inscrit le : 30/05/2011 à 18h36

Localisation : Dijon-21-FRA

Messages: 10322

Le 21/09/2013 à 23h27
Juste comme ça, car quand javais copié collé ton script de calendrier, c'était le 13 Août, mon 13 était de la même couleur aussi bien dans 2013 que le jour numéro 13 ...

Je vais enquêter :)


Config : PC Fixe : X470 GAMING PRO- AMD Ryzen 5 2600X - 16Go RAM - Radeon RX 560 (Pilote libre) - user_bar_calculate - GNOME Desktop - Kernel 4.19 LTS
Vice président de l'association COAGUL ("Côte-d’Or - Association Générale des Utilisateurs de Logiciels libres")
Webmaster de MageiaLinuxOnline uniquement. Pas de support de ma part.
Site web
Répondre
Vous n'êtes pas autorisé à écrire dans cette catégorie
